Secondary throttle housing tube ASC for BMW 5 Series E34 525ix (1996)

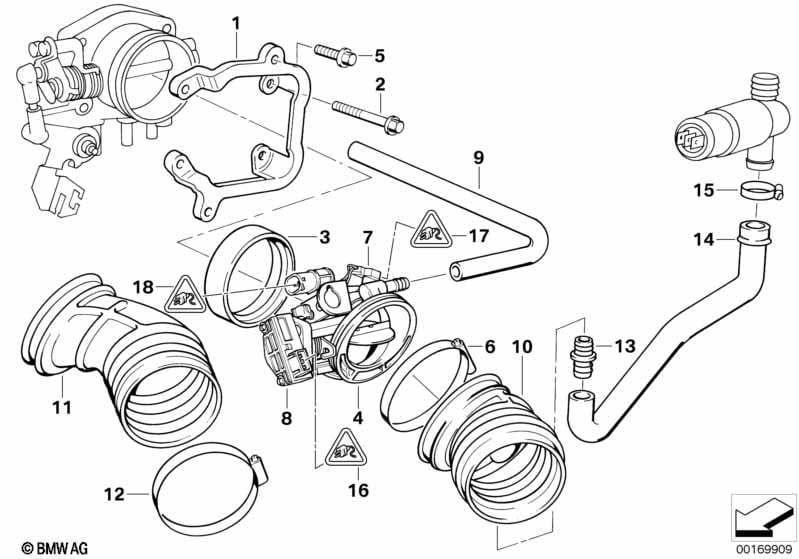

This Secondary throttle housing tube ASC technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | ASC+T | 1 | 09/1993 | 13541748717 | $14.08 | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X45-U1 | 2 | 09/1993 | 07119905547 | $1.17 | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X40-Z3 | 2 | 09/1993 | 07119913951 | $0.30 | Shop at ECS Tuning | |||
| 03 | Profile-gasket | ASC+T | 1 | 09/1993 | 13541703693 | $4.38 | Shop at ECS Tuning | |||
| 04 | Secondary throttle housing tube ASC | ASC+T | 1 | 09/1993 | 13541703463 | $410.52 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M6X20 | 2 | 09/1993 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 06 | Hose clamp | L95-102 | 1 | 09/1993 | 07129952137 | $1.52 | Shop at ECS Tuning | |||
| 07 | Heater element | ASC+T | 1 | 09/1993 | 13541703949 | $94.53 | ENDED | Shop at ECS Tuning | ||
| 08 | Throttle valve switch | ASC+T | 1 | 09/1993 | 13631703562 | $92.00 | Shop at ECS Tuning | |||
| 09 | Hose | ASC+T | 1 | 09/1993 | 11151703714 | $15.38 | Shop at ECS Tuning | |||
| 11 | Rubber boot | ASC+T | 1 | 09/1993 | 13541703695 | $53.95 | Shop at ECS Tuning | |||
| 12 | Hose clamp | L83-90 | 1 | 09/1993 | 07129952133 | $1.78 | Shop at ECS Tuning | |||
| 13 | Connection piece | ASC+T | 1 | 09/1993 | 13541703703 | $1.53 | Shop at ECS Tuning | |||
| 14 | Hose | ASC+T | 1 | 09/1993 | 13541703786 | $28.17 | Shop at ECS Tuning | |||
| 15 | Hose clamp | L32-38 | 1 | 09/1993 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 16 | Plug housing | 1 | 12521706096 | $7.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Protection cap | L=17,5MM | 1 | 61131358603 | $5.32 | Shop at ECS Tuning | ||||
| -- | Blade terminal contact MDK4 2.8 w. wire | 1,0 MM²/SN | 1 | 12520007252 | $2.03 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
