Mass air flow sensor/ASC for BMW 8 Series E31 840Ci

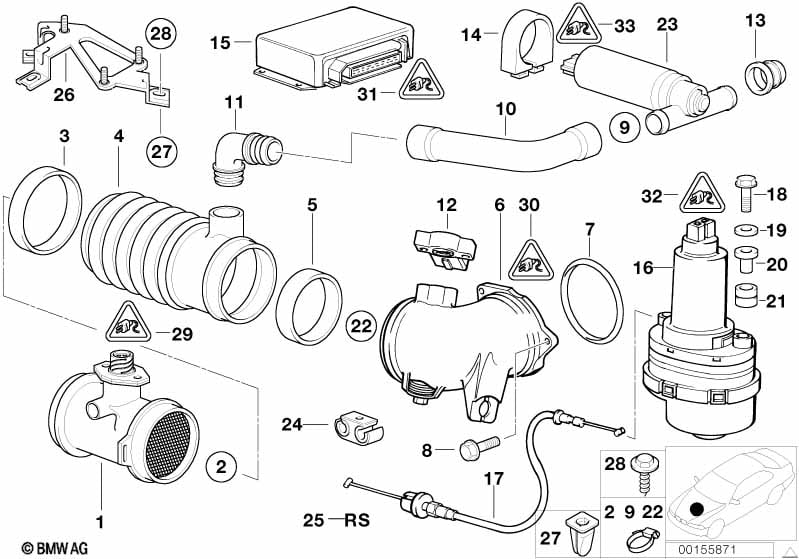

This Mass air flow sensor/ASC technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 4-POL | 1 | 13621702078 | $394.12 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 03 | Rubber Ring | 1 | 13711736195 | $6.48 | Shop at ECS Tuning | |||||
| 04 | Rubber boot | 1 | 13711433838 | $79.80 | Shop at ECS Tuning | |||||
| 05 | Rubber Ring | 1 | 13711702002 | $6.82 | Shop at ECS Tuning | |||||
| 06 | Secondary throttle housing tube ASC | ASC+T | 1 | 13541747764 | $407.70 | Shop at ECS Tuning | ||||
| 07 | O-ring | ASC+T | 1 | 13541747475 | $2.48 | ENDED | Shop at ECS Tuning | |||
| 08 | Isa screw with washer | M6X20-ZNNIV SI | 3 | 07129905556 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 10 | Hose | ASC+T | 1 | 13411702809 | $12.75 | ENDED | Shop at ECS Tuning | |||
| 11 | Support | 1 | 13541272473 | $1.43 | Shop at ECS Tuning | |||||
| 12 | Throttle valve switch | 4 KOHM | 1 | 13631721456 | +core | Shop at ECS Tuning | ||||
| 13 | Rubber grommet | 1 | 13411733217 | $10.88 | Shop at ECS Tuning | |||||
| 14 | Rubber Mounting | D=46MM | 1 | 13411736144 | $4.38 | Shop at ECS Tuning | ||||
| 16 | Throttle actuator Ads 2 | 1 | 35411163163 | $419.10 | Shop at ECS Tuning | |||||
| 17 | Bowden cable Ads 2 | L=868MM/PBX | 1 | 35411160944 | $31.52 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Sleeve | ASC+T | 2 | 35411160589 | $1.40 | Shop at ECS Tuning | ||||
| 21 | Rubber grommet | 2 | 35411160590 | $1.23 | Shop at ECS Tuning | |||||
| 22 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 23 | T-shape idle regulating valve | 1 | 13411733090 | $335.12 | Shop at ECS Tuning | |||||
| 24 | Tubing support | D=6MM | 1 | 61131379134 | $0.72 | Shop at ECS Tuning | ||||
| 25 | Throttle actuator Ads 2 | 1 | 35411162548 | $419.10 | Shop at ECS Tuning | |||||
| 32 | Plug terminal black | SCHWARZ | 1 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 1 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
