Fuel pipes and fuel filters for BMW 8 Series E31 840Ci

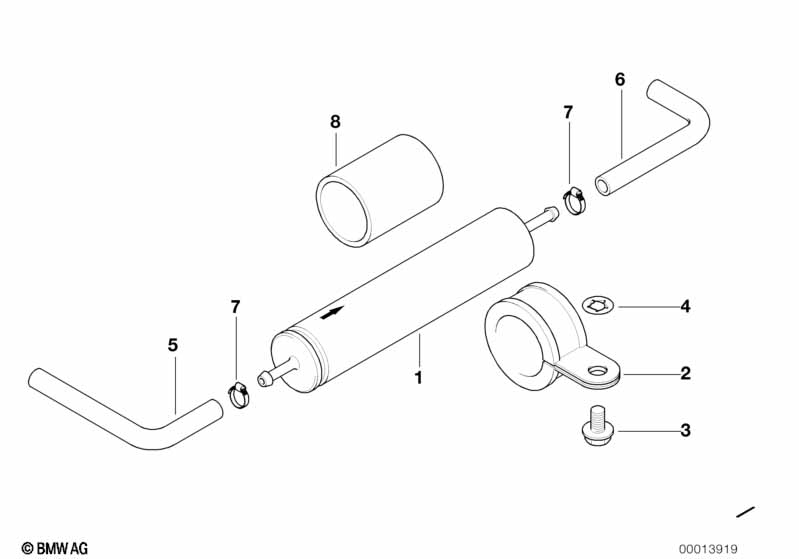

This Fuel pipes and fuel filters technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | D=55MM/L=260MM | 1 | 13321702632 | $44.04 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Damper ring | D=55MM | 1 | 13321734056 | $2.73 | Shop at ECS Tuning | ||||
| 02 | Bracket fuel strainer | D=55MM | 2 | 13321741654 | $5.22 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-Z1 | 2 | 07119915039 | $0.27 | ENDED | Shop at ECS Tuning | |||
| 04 | Circlip | M6 | 2 | 13321440349 | $0.80 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 16121182729 | $21.20 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hose | 1 | 16121182728 | $21.20 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Damper ring | D=55MM | 1 | 13321734056 | $2.73 | Shop at ECS Tuning | ||||
