Diesel part.filter sens./mounting parts for BMW 5 Series F10 525d (2011)
This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket f.sensor | 1 | 13627823854 | Shop at ECS Tuning | ||||||
| 02 | Hex nut | BM6-8-ZNS3 | 3 | 07129904870 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Exhaust pressure sensor | 1 | 13627805152 | Shop at ECS Tuning | ||||||
| 04 | Hose | 7.3X2 | X | 13628591459 | Shop at ECS Tuning | |||||
| 05 | Exhaust pressure sensor | 1 | 13628507634 | Shop at ECS Tuning | ||||||
| 06 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Pipe, backpressure | 1 | 13628510899 | Shop at ECS Tuning | ||||||
| 08 | Hollow bolt | M12X1,5 | 1 | 13627811933 | $6.15 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A12X15,5 | 2 | 13627811934 | $0.52 | Shop at ECS Tuning | ||||
| 10 | Temperature sensor, exhaust | 1 | 13627805607 | $96.25 | Shop at ECS Tuning | |||||
| 11 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 12 | Oxygen sensor | L=380MM | 2 | 13627791600 | Shop at ECS Tuning | |||||
| 13 | Temperature sensor, exhaust | 1 | 13627805606 | $96.25 | Shop at ECS Tuning | |||||
| 14 | EGR temperature sensor | L=216MM | 1 | 13628576316 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 525d Diesel part.filter sens./mounting parts?

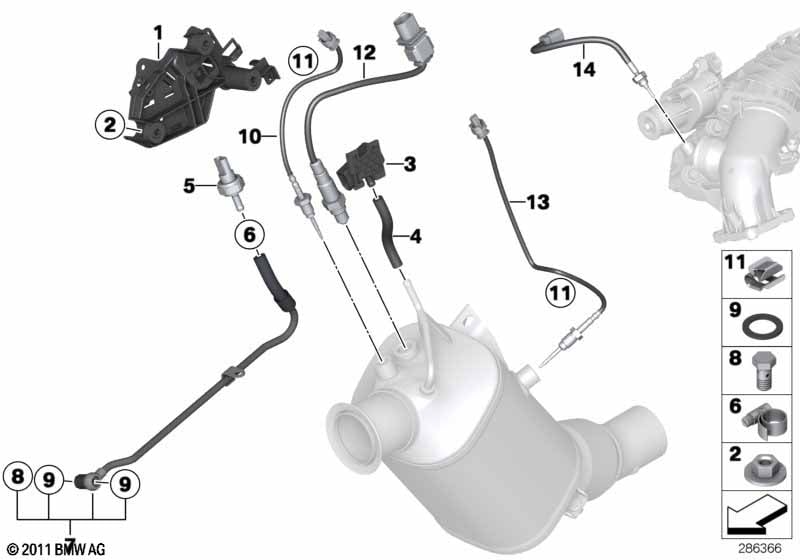

- This technical diagram illustrates the Diesel part.filter sens./mounting parts within the Fuel preparation system group for the 5 Series F10 525d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Bracket f.sensor (Part #13627823854).
- Which models use the hardware listed in this Diesel part.filter sens./mounting parts?
- The hardware and components featured in the Diesel part.filter sens./mounting parts are specific to the 5 Series F10 525d produced during 2011. These technical specifications ensure that parts like the Bracket f.sensor (13627823854) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Diesel part.filter sens./mounting parts assembly?
- Each item in the Diesel part.filter sens./mounting parts corresponds to the numbered list below the illustration. For the 5 Series F10 525d, you can identify the Bracket f.sensor by locating its position on the schematic, which then links to the official BMW part number 13627823854 for the Fuel preparation system section.
