Diesel part.filter sens./mounting parts for BMW 5 Series F10 520d

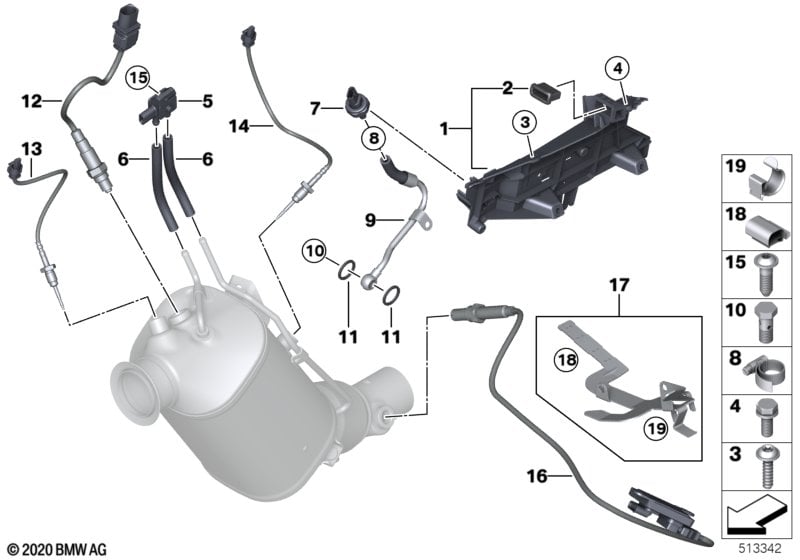

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 520d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW Diesel with Blue Performance |
S163A=Yes |
||||||||
| 01 | Bracket f.sensor | 1 | 13627811112 | +core | Shop at ECS Tuning | |||||
| 02 | Rubber Mounting | 1 | 17111712911 | $1.18 | Shop at ECS Tuning | |||||
| 03 | Screw for thermoplastic plastics | 60X22 | 1 | 13627805193 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Screw for thermoplastic plastics | 60X22 | 3 | 05/2012 | 13627805193 | $0.53 | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 05/2012 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Cylinder head cover | X | 05/2012 | 11127810584 | ENDED | Shop at ECS Tuning | ||||
| 04 | Screw for thermoplastic plastics | 60X22 | 3 | 05/2012 | 13627805193 | $0.53 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Cylinder head cover | X | 05/2012 | 11128570828 | ENDED | Shop at ECS Tuning | ||||
| 05 | Differential pressure sensor | 1 | 13627805758 | $75.27 | Shop at ECS Tuning | |||||
| 06 | Hose | 7.3X2 | X | 13628591459 | Shop at ECS Tuning | |||||
| 07 | Exhaust pressure sensor | 1 | 13628507634 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Pipe, backpressure | 1 | 13627811935 | Shop at ECS Tuning | ||||||
| 10 | Hollow bolt | M12X1,5 | 1 | 13627811933 | $6.15 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X15,5 | 2 | 13627811934 | $0.52 | Shop at ECS Tuning | ||||
| 12 | Oxygen sensor | L=380MM | 1 | 13627791600 | Shop at ECS Tuning | |||||
| 13 | Temperature sensor, exhaust | 1 | 13627805607 | $96.25 | Shop at ECS Tuning | |||||
| 14 | EGR temperature sensor | L=216MM | 1 | 13628576316 | Shop at ECS Tuning | |||||
| 15 | Torx-bolt for plastic material | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning | |||||
| 16 | Oxygen sensor | L=530MM | 1 | 13627793825 | Shop at ECS Tuning | |||||
| 17 | Lambda-probe bracket | 1 | 13628515597 | Shop at ECS Tuning | ||||||
| 18 | Cable clamp | 2 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 18 | Cable clamp | 17,4X9,9 | 1 | 11787567189 | Shop at ECS Tuning | |||||
| 19 | Cable clamp | D=19-24/B=5 | 3 | 11787548951 | $1.12 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
