High-pressure rail / injector for BMW MINI Cabrio F57 LCI One (2020)

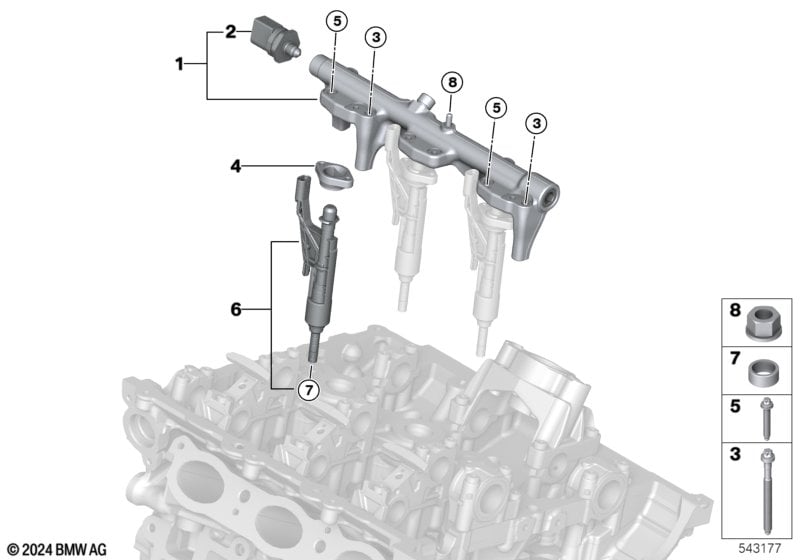

This High-pressure rail / injector technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | High-pressure rail | 1 | 13538665631 | Shop at ECS Tuning | ||||||
| 02 | Sensor, high-pressure | 1 | 13538631820 | Shop at ECS Tuning | ||||||
| 03 | Star-socket screw | BM6X70-8.8 | 4 | 13538661715 | Shop at ECS Tuning | |||||
| 04 | Bracket injector | 3 | 13538642294 | Shop at ECS Tuning | ||||||
| 05 | Star-socket screw | 5X30-10.9 | 6 | 13538661716 | Shop at ECS Tuning | |||||
| 06 | Injector | 3 | 13538656548 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F57 LCI One High-pressure rail / injector?
- This technical diagram illustrates the High-pressure rail / injector within the Fuel preparation system group for the MINI Cabrio F57 LCI One produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the High-pressure rail (Part #13538665631).
- Which models use the hardware listed in this High-pressure rail / injector?
- The hardware and components featured in the High-pressure rail / injector are specific to the MINI Cabrio F57 LCI One produced during 2020. These technical specifications ensure that parts like the High-pressure rail (13538665631) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-pressure rail / injector assembly?
- Each item in the High-pressure rail / injector corresponds to the numbered list below the illustration. For the MINI Cabrio F57 LCI One, you can identify the High-pressure rail by locating its position on the schematic, which then links to the official BMW part number 13538665631 for the Fuel preparation system section.
