Intake noise attenuator / air duct for BMW MINI Countryman F60 Cooper (2019)

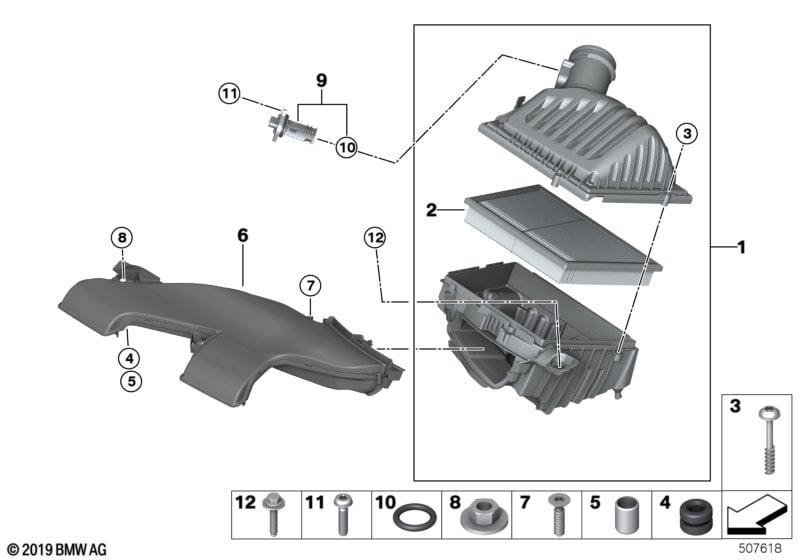

This Intake noise attenuator / air duct technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717639749 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13718513944 | Shop at ECS Tuning | ||||||
| 03 | screw for plastic | 50X34 | 1 | 13717571358 | $1.11 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 1 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 05 | Sleeve | 1 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 06 | Air-intake duct | 1 | 13717645645 | Shop at ECS Tuning | ||||||
| 07 | Countersunk head screw | 2 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
| 08 | Hex nut | BM6-8-ZNNIV SW | 2 | 51339907339 | Shop at ECS Tuning | |||||
| 09 | Hot-film air mass meter | 1 | 13627602038 | +core | Shop at ECS Tuning | |||||
| 10 | O-ring | 30,5X3,15 | 1 | 13627630589 | Shop at ECS Tuning | |||||
| 11 | Screw | 4X16 | 2 | 07129907551 | Shop at ECS Tuning | |||||
| 12 | Hex bolt with washer | M6X30 ZNNIV | 1 | 07119905727 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
