Fresh air duct / air intake for BMW 1 Series F21 LCI 116d

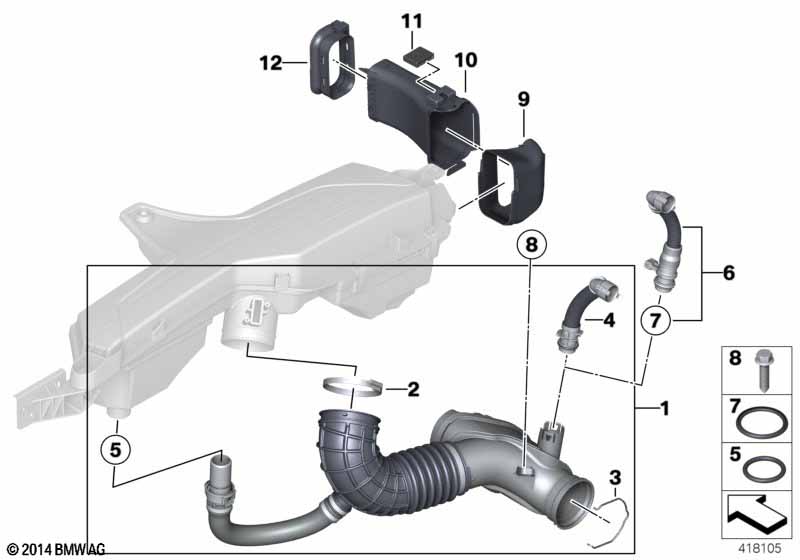

This Fresh air duct / air intake technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 116d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtered air pipe | 1 | 13718513961 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | L66-86 | 1 | 13717805178 | Shop at ECS Tuning | |||||
| 03 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 13717823517 | Shop at ECS Tuning | ||||||
| 05 | O-ring | 28X2,5MM | 1 | 11441406694 | $3.35 | Shop at ECS Tuning | ||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 06 | Pipe with heating element | 1 | 13718584829 | Shop at ECS Tuning | ||||||
| 07 | O-ring | 1 | 13717787197 | $3.75 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X20-ZNNIV SI | 1 | 07119905750 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Intake duct | 1 | 13717597585 | Shop at ECS Tuning | ||||||
| 10 | Intake duct | 1 | 13717597584 | Shop at ECS Tuning | ||||||
| 11 | Rubber Mounting | 1 | 13718573147 | Shop at ECS Tuning | ||||||
| 12 | Intake manifold, front | 1 | 11/2014 | 13718622986 | Shop at ECS Tuning | |||||
| 12 | Intake manifold, front | 1 | 11/2014 | 13717613156 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Intake grill | 1 | 11/2014 | 13718507321 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F21 LCI 116d Fresh air duct / air intake?
- This technical diagram illustrates the Fresh air duct / air intake within the Fuel preparation system group for the 1 Series F21 LCI 116d. It provides a detailed exploded view of the components, identifying key parts such as the Filtered air pipe (Part #13718513961).
- Which models use the hardware listed in this Fresh air duct / air intake?
- The hardware and components featured in the Fresh air duct / air intake are specific to the 1 Series F21 LCI 116d. These technical specifications ensure that parts like the Filtered air pipe (13718513961) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fresh air duct / air intake assembly?
- Each item in the Fresh air duct / air intake corresponds to the numbered list below the illustration. For the 1 Series F21 LCI 116d, you can identify the Filtered air pipe by locating its position on the schematic, which then links to the official BMW part number 13718513961 for the Fuel preparation system section.
