Throttle Housing Assy for BMW 3 Series E36 328i (1998)

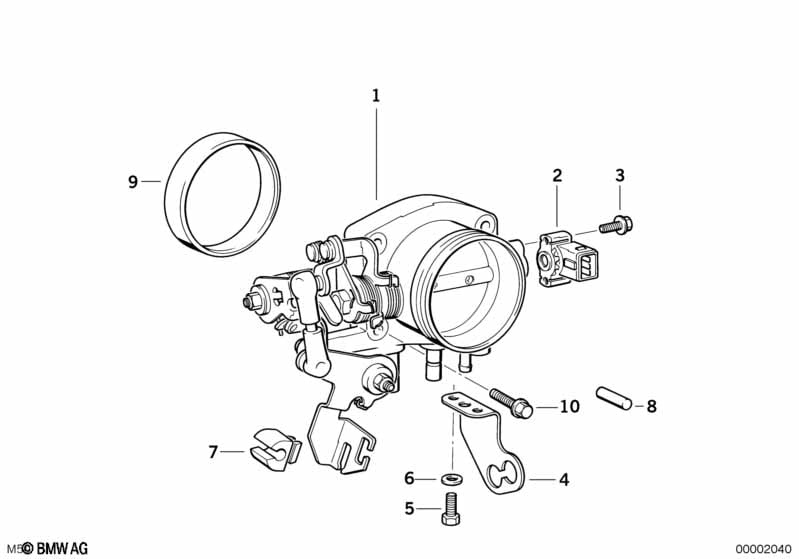

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 13541433385 | $362.72 | +core | Shop at ECS Tuning | ||||
| 02 | Throttle valve switch | 4 KOHM | 1 | 13631721456 | +core | Shop at ECS Tuning | ||||
| 02 | Throttle valve switch | 4 KOHM | 1 | 13631726591 | $96.25 | ENDED, SI 130491336 | Shop at ECS Tuning | |||
| 03 | Fillister head screw | M4X2,5 | 2 | 13541726918 | $5.50 | Shop at ECS Tuning | ||||
| 04 | Bracket for accelerator bowden cable | 1 | 13541730049 | $6.43 | Shop at ECS Tuning | |||||
| 07 | Bearing accelator bowden cable | SCHWARZ | 1 | 13541747519 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Cap | D=7,0MM | 1 | 11611727176 | $3.39 | Shop at ECS Tuning | ||||
| 09 | Profile-gasket | 1 | 11611716174 | $15.02 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X35-U1-8.8 | 4 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X45-Z1 | 4 | 03/1994 | 08/2000 | 07119913714 | $0.96 | ENDED | Shop at ECS Tuning | |
| For vehicles with ASC+T |
=Yes |
|||||||||
| 10 | Hex bolt with washer | M6X45-Z1 | 4 | 03/1994 | 08/2000 | 07119913714 | $0.96 | ENDED | Shop at ECS Tuning | |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
