Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E36 320i (1999)

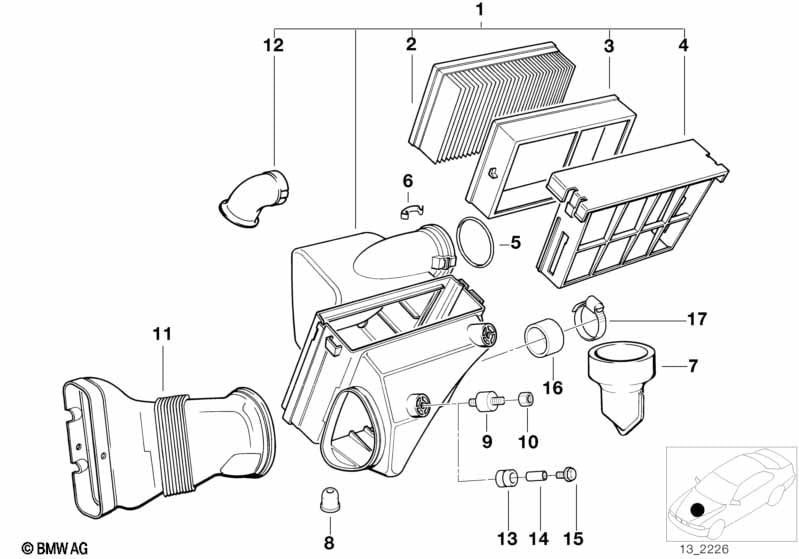

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | for continuation of air duct see HG 51 | |||||||||
| 01 | Intake muffler | 1 | 13711740138 | $246.64 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version ONLY FOR HEAVY DUTY |
S823A=Yes |
|||||||||
| 01 | Intake muffler with cyclon | 1 | 13711427792 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13721730946 | $31.24 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version ONLY FOR HEAVY DUTY |
S823A=Yes |
|||||||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Intake muffler with cyclon | X | 13711427792 | ENDED, +core | Shop at ECS Tuning | |||||
| -- | Intake muffler with cyclon | X | 13711427793 | +core | Shop at ECS Tuning | |||||
| 03 | Frame | KNECHT | 1 | 13711730895 | $22.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Frame | KNECHT | 1 | 13711730896 | $25.07 | Shop at ECS Tuning | ||||
| 05 | O-ring | 69X6MM | 1 | 13711710059 | $3.75 | Shop at ECS Tuning | ||||
| 06 | Spring clip | L=34MM | 2 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| 08 | Rubber buffer | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 09 | Rubber Mounting | 2 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 10 | Hex nut | BM6-8-ZNFE SW | 2 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Suction tube | 1 | 13711730756 | $39.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
