Mass air flow sensor for BMW 3 Series E36 325i (1995)
This Mass air flow sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 4-POL | 1 | 13621747155 | $402.32 | Shop at ECS Tuning | ||||
| 02 | Protection grid f additional fan | 1 | 13621730087 | $12.82 | Shop at ECS Tuning | |||||

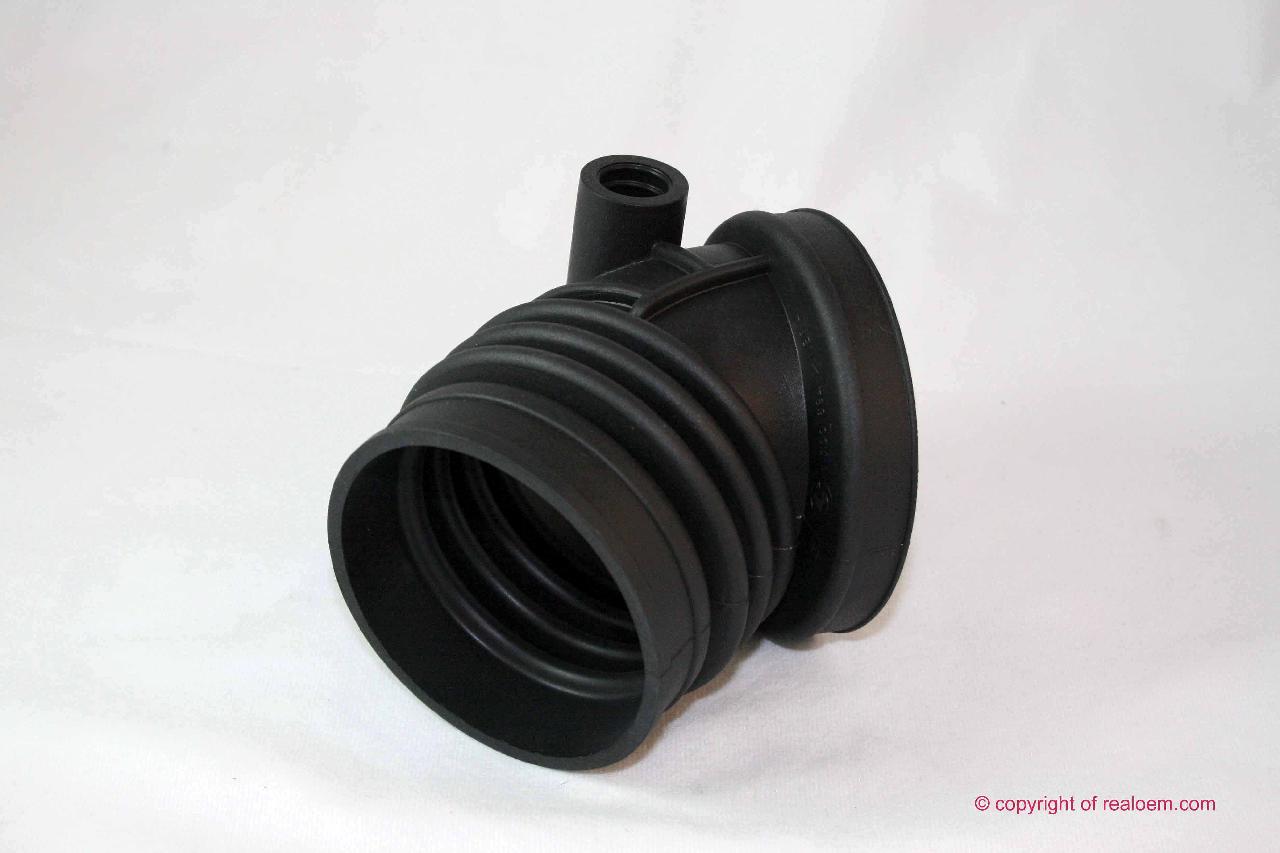

| 03 | Rubber boot | ASC+T | 1 | 13541703694 | $35.63 | +core | Shop at ECS Tuning | |||
| 03 | Rubber boot | 1 | 13541738757 | $19.87 | Shop at ECS Tuning | |||||
| 03 | Rubber boot | 1 | 13541738757 | $19.87 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 06 | T-shape idle regulating valve | BOSCH | 1 | 13411744713 | $211.28 | Shop at ECS Tuning | ||||
| ASSEMBLY INTAKE MANIFOLD SYSTEM |
||||||||||
| For vehicles with National version south africa |
L824A=Yes |
|||||||||
| 06 | T-shape idle regulating valve | BOSCH | 1 | 13411744713 | $211.28 | Shop at ECS Tuning | ||||
| 07 | Bracket idle adjuster | 1 | 13411735330 | $2.93 | Shop at ECS Tuning | |||||
| 08 | Hose | 1 | 13411738185 | $12.32 | Shop at ECS Tuning | |||||
| 10 | Hose | 1 | 13411738186 | $12.75 | Shop at ECS Tuning | |||||
| 12 | Support | 1 | 13411722944 | $0.53 | Shop at ECS Tuning | |||||
| 13 | Protection cap | 1 | 12521714311 | $2.37 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug housing | 1 | 12521706096 | $7.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Blade terminal contact MDK4 2.8 w. wire | 2,5 MM²/SN | 1 | 12520007253 | $2.37 | Shop at ECS Tuning | ||||
| -- | Blade terminal contact MDK4 2.8 w. wire | 0,5 MM²/ AU | 1 | 12520007254 | $3.08 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
