Throttle actuator ASC+T for BMW 3 Series E36 M3 (1999)

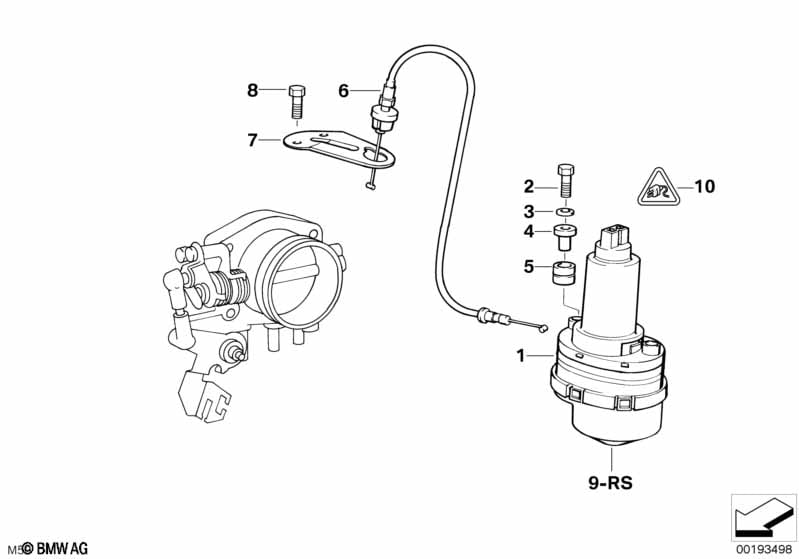

This Throttle actuator ASC+T technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle actuator Ads 2 | 1 | 35411163163 | $419.10 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Sleeve | ASC+T | 2 | 35411160589 | $1.40 | Shop at ECS Tuning | ||||
| 05 | Rubber grommet | 2 | 35411160590 | $1.23 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO SECONDARY THROTTLE HOUSING TUBE ASC |
||||||||||
| 06 | Bowden cable Ads 2 | L=377MM/PBX | 1 | 35411162495 | $31.52 | Shop at ECS Tuning | ||||
| 09 | Throttle actuator Ads 2 | 1 | 35411162548 | $419.10 | Shop at ECS Tuning | |||||
| 10 | Plug terminal black | SCHWARZ | 1 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 1 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
