Fuel injection system/Injection valve for BMW 3 Series E36 323i (1999)

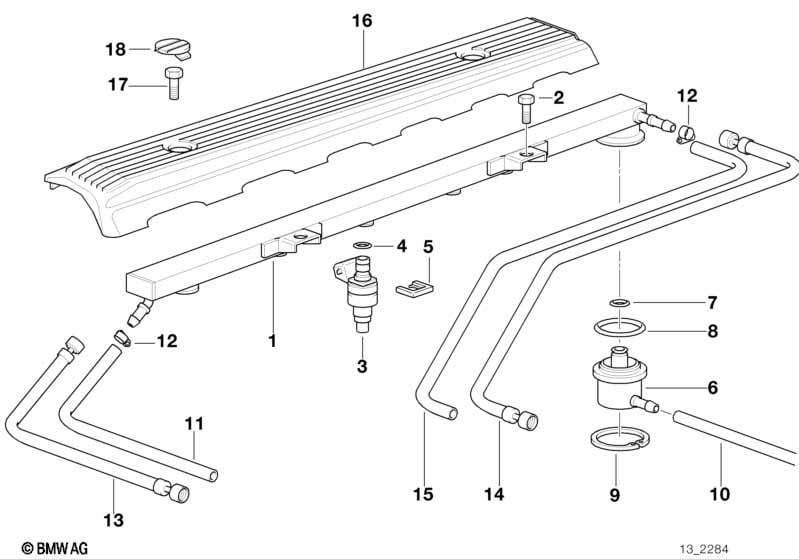

This Fuel injection system/Injection valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 09/1995 | 13531436469 | +core | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Injection valve | BOSCH | 6 | 13641730060 | $122.42 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | 6 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 1 | 13531436110 | $75.10 | Shop at ECS Tuning | |||||
| 07 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 08 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 09 | Lock Ring | 1 | 13531736234 | $2.12 | Shop at ECS Tuning | |||||
| 10 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 13 | Inlet fuel hose | 1 | 09/1995 | 13311427638 | $45.38 | +core | Shop at ECS Tuning | |||
| 15 | Retour fuel hose | 1 | 09/1995 | 13311427637 | $45.38 | +core | Shop at ECS Tuning | |||
| 16 | Cover | 1 | 13541740160 | $22.98 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 18 | Cap | 2 | 11121726089 | $2.12 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Fuel injection system/Injection valve?
- This technical diagram illustrates the Fuel injection system/Injection valve within the Fuel preparation system group for the 3 Series E36 323i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Injection tube (Part #13531436469).
- Which models use the hardware listed in this Fuel injection system/Injection valve?
- The hardware and components featured in the Fuel injection system/Injection valve are specific to the 3 Series E36 323i produced during 1999. These technical specifications ensure that parts like the Injection tube (13531436469) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel injection system/Injection valve assembly?
- Each item in the Fuel injection system/Injection valve corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Injection tube by locating its position on the schematic, which then links to the official BMW part number 13531436469 for the Fuel preparation system section.
