Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E36 318is (1998)

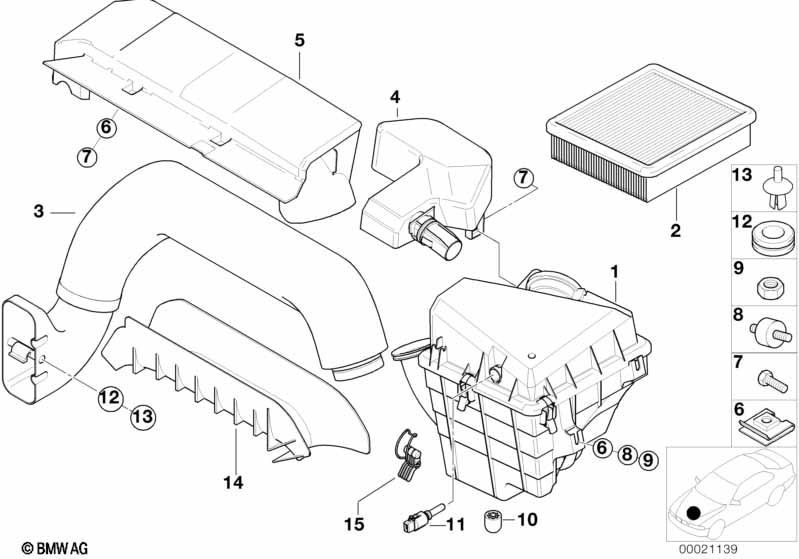

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13711743314 | $278.31 | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 13721247404 | $26.34 | Shop at ECS Tuning | |||||
| 03 | Intake tube | 1 | 13711743320 | $48.39 | Shop at ECS Tuning | |||||
| 04 | Resonator | 1 | 13711743326 | $18.38 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 13711743325 | $33.97 | Shop at ECS Tuning | |||||
| 06 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 09 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 10 | Rubber buffer | 1 | 08/2000 | 13711289624 | $3.50 | ENDED | Shop at ECS Tuning | |||
| 11 | Intake air temperature sensor | 1 | 13629899008 | Shop at ECS Tuning | ||||||
| For vehicles with Air conditioning or Automatic air conditioning |
S530A=Yes S534A=Yes |
|||||||||
| 14 | Air channel bracket | 1 | 64548369127 | $12.85 | Shop at ECS Tuning | |||||
| 15 | Tensioner | 4 | 13719071752 | $2.07 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
