Mass air flow sensor/ASC for BMW 3 Series E36 318is (1999)

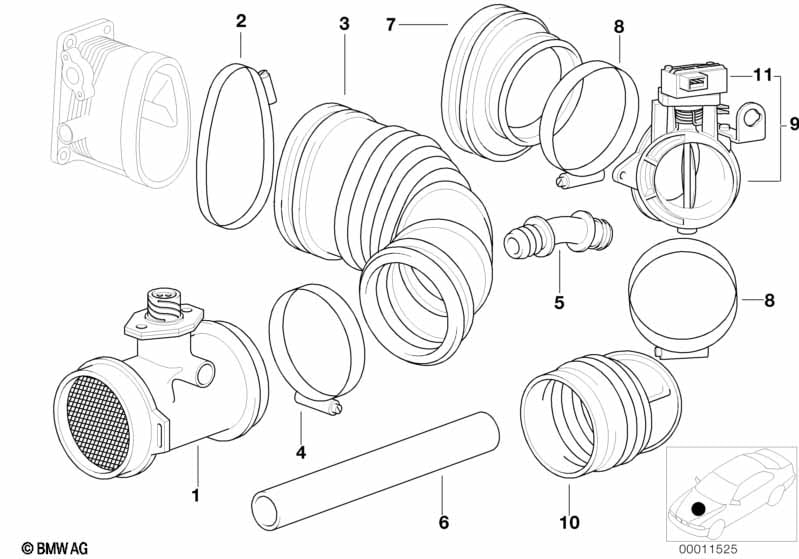

This Mass air flow sensor/ASC technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 4-POL | 1 | 13621736224 | $402.32 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 03 | Rubber boot | 1 | 13711247031 | $28.30 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L71-78 | 1 | 07129952129 | $1.48 | Shop at ECS Tuning | ||||
| 05 | Support | 1 | 13411722944 | $0.53 | Shop at ECS Tuning | |||||
| For vehicles with Automatic stability control (ASC+T) |
S214A=No |
|||||||||
| 06 | Air hose | NBR | 1 | 13411247782 | $3.95 | Shop at ECS Tuning | ||||
| For vehicles with Automatic stability control (ASC+T) |
S214A=Yes |
|||||||||
| 06 | Air hose | TLEV | 1 | 13411433923 | $6.03 | +core | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Mass air flow sensor/ASC?
- This technical diagram illustrates the Mass air flow sensor/ASC within the Fuel preparation system group for the 3 Series E36 318is produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13621736224).
- Which models use the hardware listed in this Mass air flow sensor/ASC?
- The hardware and components featured in the Mass air flow sensor/ASC are specific to the 3 Series E36 318is produced during 1999. These technical specifications ensure that parts like the Hot-film air mass meter (13621736224) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mass air flow sensor/ASC assembly?
- Each item in the Mass air flow sensor/ASC corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13621736224 for the Fuel preparation system section.
