High-pressure rail / injector for BMW 3 Series F30 LCI 340i (2017)

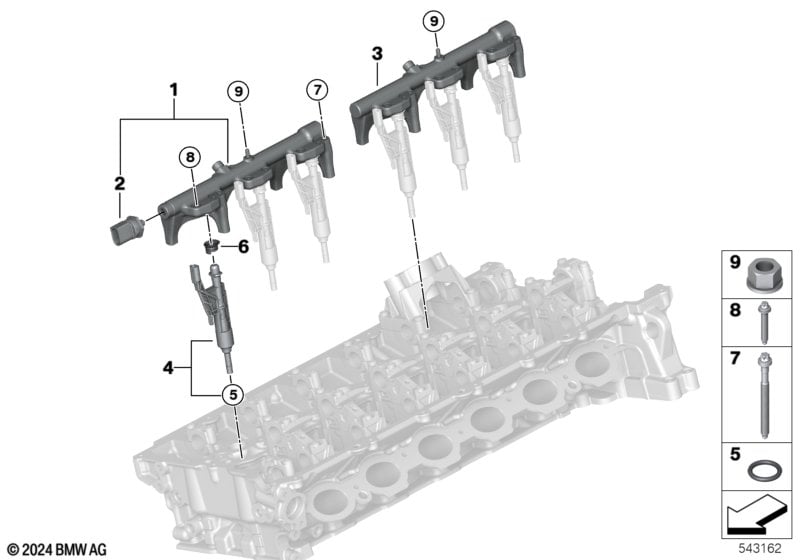

This High-pressure rail / injector technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Comply with repair instructions! Revised torque for injector removal. |
|||||||||
| 01 | High-pressure rail | 1 | 13538694197 | Shop at ECS Tuning | ||||||
| 02 | Sensor, high-pressure | 1 | 13538643665 | Shop at ECS Tuning | ||||||
| 03 | High-pressure rail | 4-6 | 1 | 13538665635 | Shop at ECS Tuning | |||||
| 04 | Injector | 6 | 13538625396 | Shop at ECS Tuning | ||||||
| 05 | Gasket ring | 6 | 13537591006 | Shop at ECS Tuning | ||||||
| 06 | Bracket injector | 6 | 13538642294 | Shop at ECS Tuning | ||||||
| 07 | Star-socket screw | BM6X70-8.8 | 8 | 13538661715 | Shop at ECS Tuning | |||||
| 08 | Star-socket screw | 5X30-10.9 | 12 | 13538661716 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 340i High-pressure rail / injector?
- This technical diagram illustrates the High-pressure rail / injector within the Fuel preparation system group for the 3 Series F30 LCI 340i produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the High-pressure rail (Part #13538694197).
- Which models use the hardware listed in this High-pressure rail / injector?
- The hardware and components featured in the High-pressure rail / injector are specific to the 3 Series F30 LCI 340i produced during 2017. These technical specifications ensure that parts like the High-pressure rail (13538694197) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-pressure rail / injector assembly?
- Each item in the High-pressure rail / injector corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 340i, you can identify the High-pressure rail by locating its position on the schematic, which then links to the official BMW part number 13538694197 for the Fuel preparation system section.
