Air duct for BMW 4 Series F32 LCI 420i (2020)

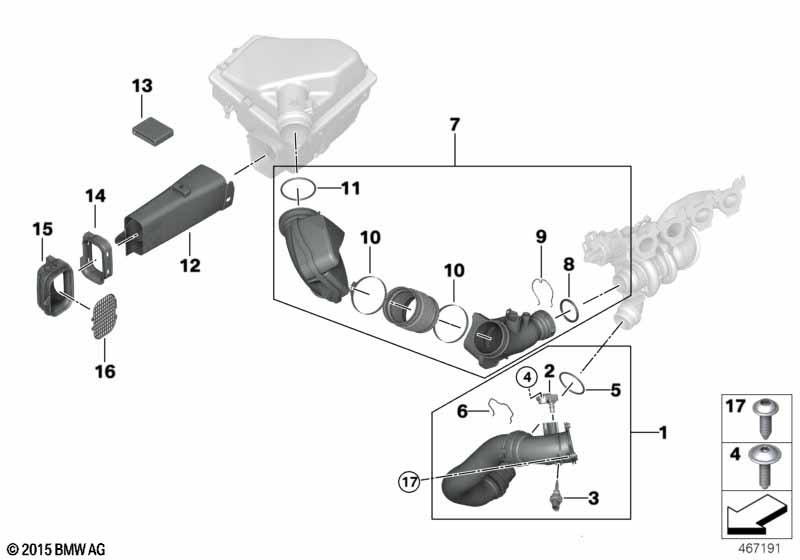

This Air duct technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charge air line | 1 | 13718601683 | Shop at ECS Tuning | ||||||
| 02 | Sensor, charge-air pressure | 1 | 13628637896 | Shop at ECS Tuning | ||||||
| 03 | Temperature sensor | 1 | 13628626176 | Shop at ECS Tuning | ||||||
| 04 | Screw | 5X20 | 1 | 07129908739 | Shop at ECS Tuning | |||||
| 05 | Preformed seal | 1 | 13718642240 | Shop at ECS Tuning | ||||||
| 06 | Spring clip | 1 | 13718642239 | Shop at ECS Tuning | ||||||
| 07 | Filtered air pipe with resonator | 1 | 13718601681 | Shop at ECS Tuning | ||||||
| 08 | Preformed seal | 1 | 13717601067 | Shop at ECS Tuning | ||||||
| 09 | Spring clip | 1 | 13718637816 | Shop at ECS Tuning | ||||||
| 10 | Hose clamp | L77-84 | 2 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | D=75MM | 1 | 13718637819 | Shop at ECS Tuning | |||||
| 12 | Unfiltered air snorkel | 1 | 13717646769 | Shop at ECS Tuning | ||||||
| 13 | Rubber Mounting | 1 | 13718573147 | Shop at ECS Tuning | ||||||
| 14 | Intake duct | 1 | 13718632467 | Shop at ECS Tuning | ||||||
| 17 | Screw | 6X33 | 3 | 13718677692 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 LCI 420i Air duct?
- This technical diagram illustrates the Air duct within the Fuel preparation system group for the 4 Series F32 LCI 420i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Charge air line (Part #13718601683).
- Which models use the hardware listed in this Air duct?
- The hardware and components featured in the Air duct are specific to the 4 Series F32 LCI 420i produced during 2020. These technical specifications ensure that parts like the Charge air line (13718601683) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air duct assembly?
- Each item in the Air duct corresponds to the numbered list below the illustration. For the 4 Series F32 LCI 420i, you can identify the Charge air line by locating its position on the schematic, which then links to the official BMW part number 13718601683 for the Fuel preparation system section.
