Diesel part.filter sens./mounting parts for BMW 7 Series G12 730Ld (2019)

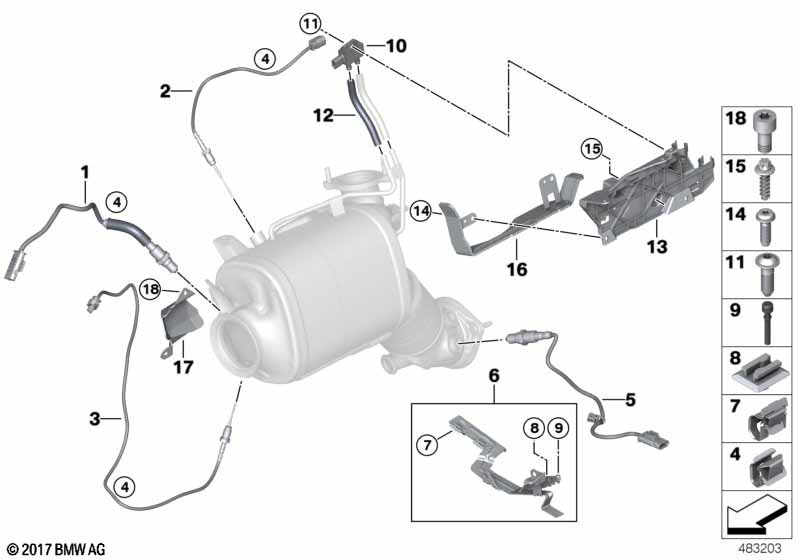

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 01 | Oxygen sensor | L=460 | 1 | 07/2020 | 13628595102 | Shop at ECS Tuning | ||||
| 02 | Temperature sensor, exhaust | L=332 | 1 | 07/2020 | 13628570234 | Shop at ECS Tuning | ||||
| 03 | Temperature sensor, exhaust | L=500 | 1 | 07/2020 | 13628595097 | Shop at ECS Tuning | ||||
| 04 | Clip | 4 | 07/2020 | 12521437136 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Oxygen sensor | L=510 | 1 | 13627101680 | Shop at ECS Tuning | |||||
| 06 | Lambda-probe bracket | 1 | 13628570829 | Shop at ECS Tuning | ||||||
| 07 | Cable clamp | 2 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 08 | Cable strap with bracket | L=200MM | 3 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Bump stop | H=5,5MM | 1 | 46632309923 | $2.80 | Shop at ECS Tuning | ||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 10 | Differential pressure sensor | 1 | 13628570686 | Shop at ECS Tuning | ||||||
| 11 | Torx-bolt for plastic material | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 12 | Hose | 7.3X2 | X | 13628591459 | Shop at ECS Tuning | |||||
| 13 | Sensor holder | 1 | 13628571779 | Shop at ECS Tuning | ||||||
| 14 | Screw | 6X20 | 4 | 07129907489 | Shop at ECS Tuning | |||||
| 15 | screw for plastic | TS6X20-F-A2-70 | 1 | 13628582284 | Shop at ECS Tuning | |||||
| 16 | Heat shield | 1 | 13628588467 | Shop at ECS Tuning | ||||||
