Air duct for BMW 5 Series G30 520dX (2020)

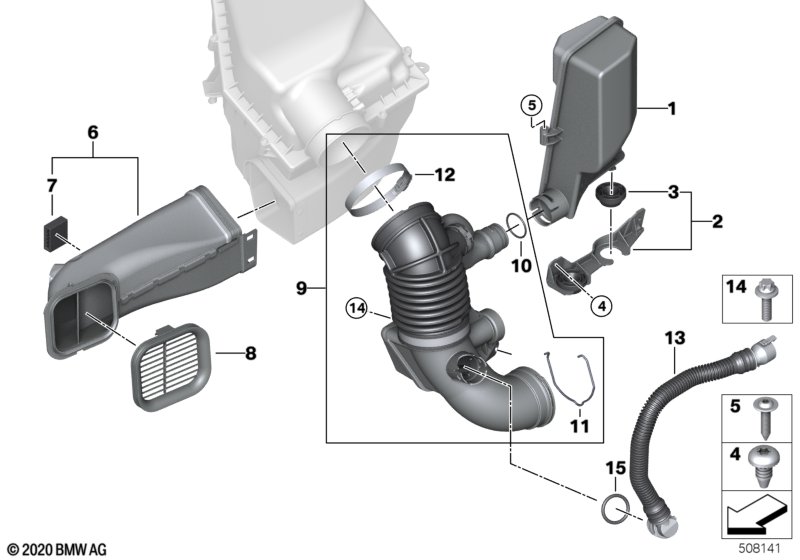

This Air duct technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Resonator | 1 | 13718591849 | Shop at ECS Tuning | ||||||
| 02 | Resonator holder | 1 | 13718623292 | Shop at ECS Tuning | ||||||
| 03 | Rubber Mounting | 1 | 13718620471 | Shop at ECS Tuning | ||||||
| 04 | Torx screw, self-threading | M6X13-ZNNIVSI | 1 | 31146786689 | Shop at ECS Tuning | |||||
| 06 | Intake duct | 1 | 13718577168 | Shop at ECS Tuning | ||||||
| 07 | Rubber element | 1 | 13718651955 | Shop at ECS Tuning | ||||||
| 08 | Intake grill | 1 | 13717643298 | Shop at ECS Tuning | ||||||
| 09 | Filtered air pipe | 1 | 13718573422 | Shop at ECS Tuning | ||||||
| 10 | O-ring | D32 X 2.5 | 1 | 13718652852 | Shop at ECS Tuning | |||||
| 11 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| 12 | Hose clamp | D 88,8 - D 99,5 | 1 | 13718651957 | Shop at ECS Tuning | |||||
| 13 | Pipe | 1 | 13717823517 | Shop at ECS Tuning | ||||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 13 | Pipe with heating element | 1 | 13718573971 | Shop at ECS Tuning | ||||||
| 14 | Torx bolt | BM6X20-8.8-ZNS3 | 1 | 07119907243 | Shop at ECS Tuning | |||||
| 15 | O-ring | 26X3 | 1 | 13718473143 | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 15 | O-ring | 24,99X3,53 | 1 | 13718473144 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 520dX Air duct?
- This technical diagram illustrates the Air duct within the Fuel preparation system group for the 5 Series G30 520dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Resonator (Part #13718591849).
- Which models use the hardware listed in this Air duct?
- The hardware and components featured in the Air duct are specific to the 5 Series G30 520dX produced during 2020. These technical specifications ensure that parts like the Resonator (13718591849) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air duct assembly?
- Each item in the Air duct corresponds to the numbered list below the illustration. For the 5 Series G30 520dX, you can identify the Resonator by locating its position on the schematic, which then links to the official BMW part number 13718591849 for the Fuel preparation system section.
