Exhaust-gas sensors / NOX sensor / SCR for BMW 7 Series G12 730LdX (2018)

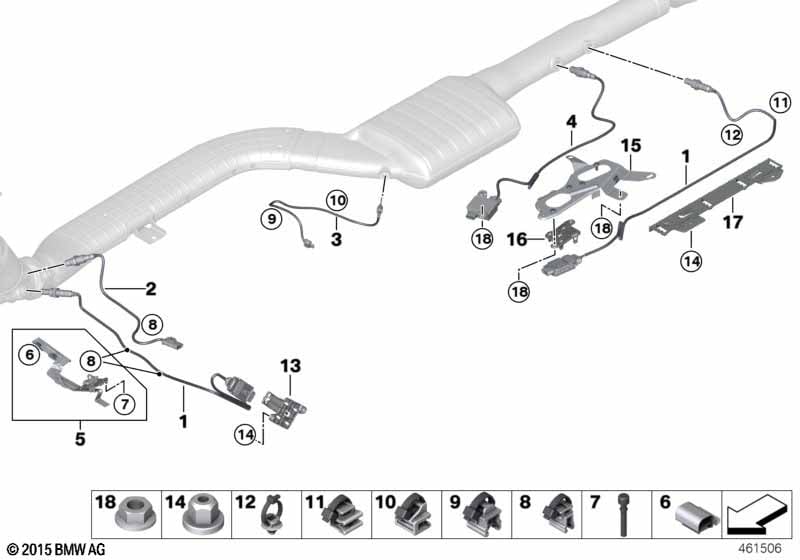

This Exhaust-gas sensors / NOX sensor / SCR technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | NOX sensor | L=1040MM | 2 | 10/2016 | 13628580410 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 02 | Oxygen sensor | L=510 | 1 | 13627101680 | Shop at ECS Tuning | |||||
| 03 | Temperature sensor, exhaust | L=340 | 1 | 10/2016 | 13628589814 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 Observe the repair instructions for the installation position! |
S161A=No |
|||||||||
| 04 | diesel particulate sensor | L=1000MM | 1 | 13628582026 | Shop at ECS Tuning | |||||
| 05 | Lambda-probe bracket | 1 | 13628570829 | Shop at ECS Tuning | ||||||
| 06 | Cable clamp | 2 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 07 | Bump stop | H=5,5MM | 1 | 46632309923 | $2.80 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 08 | Cable strap with bracket | L=200MM | 3 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Cable strap with bracket | L=200MM | 1 | 61137560191 | $1.40 | Shop at ECS Tuning | ||||
| 10 | Cable strap bracket | 2 | 61137562743 | $0.68 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 11 | Cable strap with bracket | L=200MM | 2 | 61136918644 | $0.92 | Shop at ECS Tuning | ||||
| 12 | Cable strap with bracket | Ø=7,9 / L=150 | 1 | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 13 | Bracket, control module for NOX | 1 | 13628591639 | Shop at ECS Tuning | ||||||
| 14 | Plastic nut for coarse threaded pin | 2 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 15 | Bracket for control modules | 1 | 13628570053 | Shop at ECS Tuning | ||||||
| 16 | Bracket, control module for NOX | 1 | 13628576338 | Shop at ECS Tuning | ||||||
| 17 | Bracket, NOX / sensor PM cable | 1 | 13628571778 | Shop at ECS Tuning | ||||||
| 18 | Hex nut with plate | M6-8-ZNNIV SI | 6 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
