Exhaust-gas sensors / sensor for NOX for BMW 2 Series F46 Gran Tourer LCI 218d (2022)

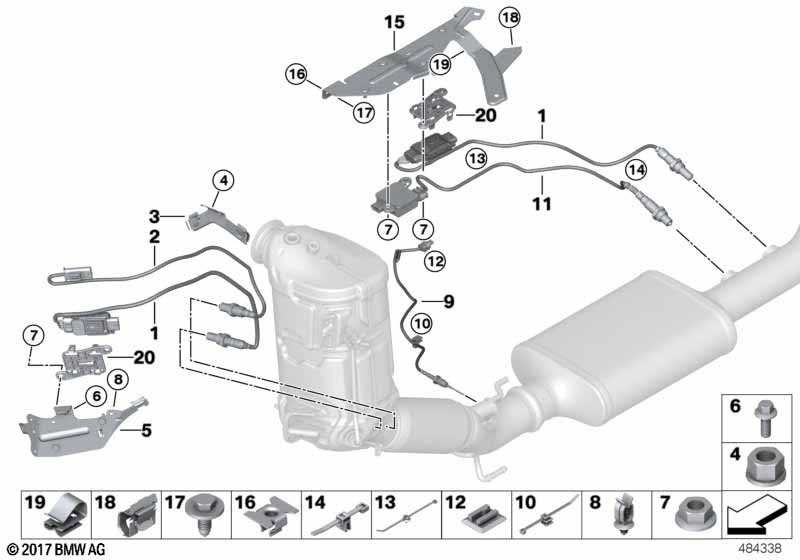

This Exhaust-gas sensors / sensor for NOX technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer LCI 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sensor for NOX | L=600MM | 2 | 13628580408 | Shop at ECS Tuning | |||||
| 02 | Oxygen sensor | L=660 | 1 | 13628595135 | Shop at ECS Tuning | |||||
| 03 | Lambda-probe bracket | 1 | 13628594517 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | AM6-A2-70 | 1 | 07129905826 | $2.61 | Shop at ECS Tuning | ||||
| 05 | Lambda-probe bracket | 1 | 13628587806 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt | M6X16 | 2 | 07119905726 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Cable holder | SCHWARZ | 2 | 61131389898 | $0.55 | Shop at ECS Tuning | ||||
| 09 | Temperature sensor, exhaust | L=526 | 1 | 13628589817 | Shop at ECS Tuning | |||||
| 10 | Cable strap with bracket | L=200MM | 1 | 61136918644 | $0.92 | Shop at ECS Tuning | ||||
| Diesel particulate sensor | ||||||||||
| 11 | Read comments and instruct. carefully! | X | 01104444444 | ENDED, NoS | Shop at ECS Tuning | |||||
| Carry out the test plan in ISTA. The corresponding article number for the diesel particulate sensor will be displayed. |
||||||||||
| 12 | Bracket, plug connection gray | 1 | 61138365536 | $0.93 | Shop at ECS Tuning | |||||
| 13 | Cable strap with bracket | 1 | 61137709309 | Shop at ECS Tuning | ||||||
| 14 | Cable strap with bracket | L=200MM | 1 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 15 | Holder for exhaust recirculation sensors | 1 | 13629887386 | Shop at ECS Tuning | ||||||
| 16 | Prestol-cage | M6 ZNS3 | 3 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex bolt | M6 | 3 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| 18 | Cable clamp | 1 | 11787547198 | $1.25 | Shop at ECS Tuning | |||||
| 19 | Clip retainer | 1 | 11787571698 | Shop at ECS Tuning | ||||||
| 20 | Bracket, control module for NOX | 2 | 13628576338 | Shop at ECS Tuning | ||||||
