Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 8 Series F91 M8 Convertible M8 (2025)

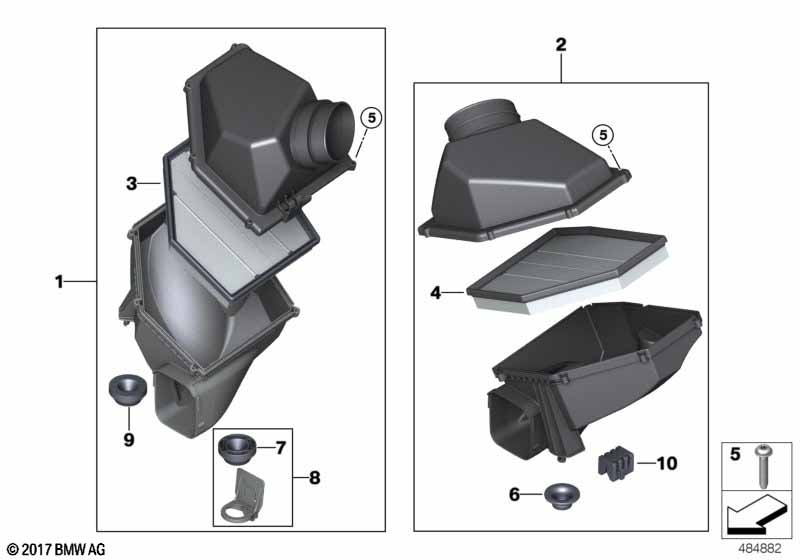

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 8 Series F91 M8 Convertible M8. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | ZYL. 1-4 | 1 | 07/2024 | 13717852379 | Shop at ECS Tuning | ||||
| 02 | Intake muffler | ZYL. 5-8 | 1 | 07/2024 | 13717852381 | Shop at ECS Tuning | ||||
| 03 | Air filter element | ZYL. 1-4 | 1 | 13717852380 | Shop at ECS Tuning | |||||
| 04 | Air filter element | ZYL. 5-8 | 1 | 13717852382 | Shop at ECS Tuning | |||||
| 05 | Torx screw | 5X26 | 12 | 07129908744 | Shop at ECS Tuning | |||||
| 06 | Grommet | 1 | 13718643158 | Shop at ECS Tuning | ||||||
| 07 | Rubber Mounting | 3 | 13718620471 | Shop at ECS Tuning | ||||||
| 08 | Bracket for intake noise attenuator | 2 | 13718620475 | Shop at ECS Tuning | ||||||
| 09 | Rubber buffer | 1 | 13717571356 | $3.41 | Shop at ECS Tuning | |||||
| 10 | Decoupling element | 1 | 13718043598 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series F91 M8 Convertible M8 Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- This technical diagram illustrates the Intake silencer / Filter cartridge Intake silencer / Filter cartridge within the Fuel preparation system group for the 8 Series F91 M8 Convertible M8 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13717852379).
- Which models use the hardware listed in this Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- The hardware and components featured in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge are specific to the 8 Series F91 M8 Convertible M8 produced during 2025. These technical specifications ensure that parts like the Intake muffler (13717852379) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake silencer / Filter cartridge Intake silencer / Filter cartridge assembly?
- Each item in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge corresponds to the numbered list below the illustration. For the 8 Series F91 M8 Convertible M8, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13717852379 for the Fuel preparation system section.
