Fuel pipes / Mounting parts for BMW 6 Series G32 GT 620d (2020)

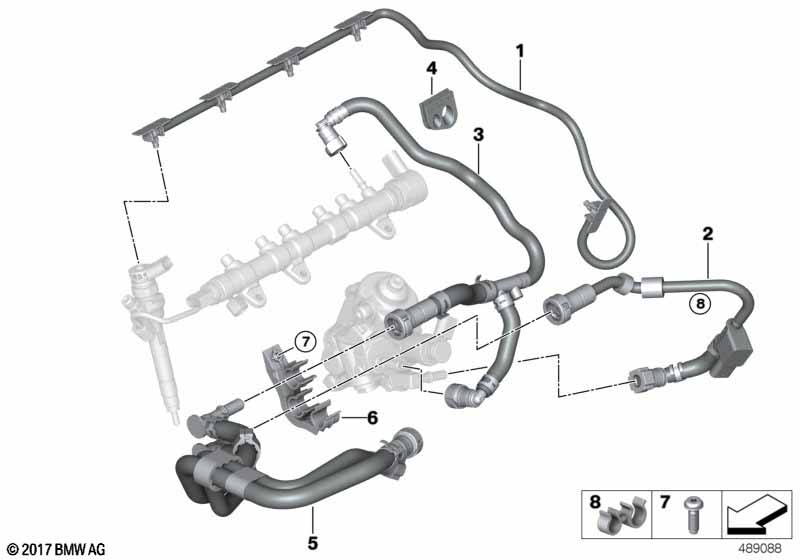

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Overflow oil line | 1 | 13538587546 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line with sensor | 1 | 13538579955 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line with sensor | 1 | 13535B40C49 | NoS | Shop at ECS Tuning | |||||
| 03 | Fuel return line | 1 | 13538595120 | Shop at ECS Tuning | ||||||
| 04 | Grommet | 1 | 13537801976 | Shop at ECS Tuning | ||||||
| 05 | Fuel line in engine compartment | 1 | 10/2023 | 13538579957 | Shop at ECS Tuning | |||||
| 05 | Fuel line, engine compartment | 1 | 13535A79569 | NoS | Shop at ECS Tuning | |||||
| 06 | Fuel pipe bracket | 1 | 13538571678 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M6X20 | 1 | 03/2020 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 08 | Hose clamp, double | 1 | 13538587890 | Shop at ECS Tuning |
