Air duct for BMW 6 Series G32 GT 620d (2020)

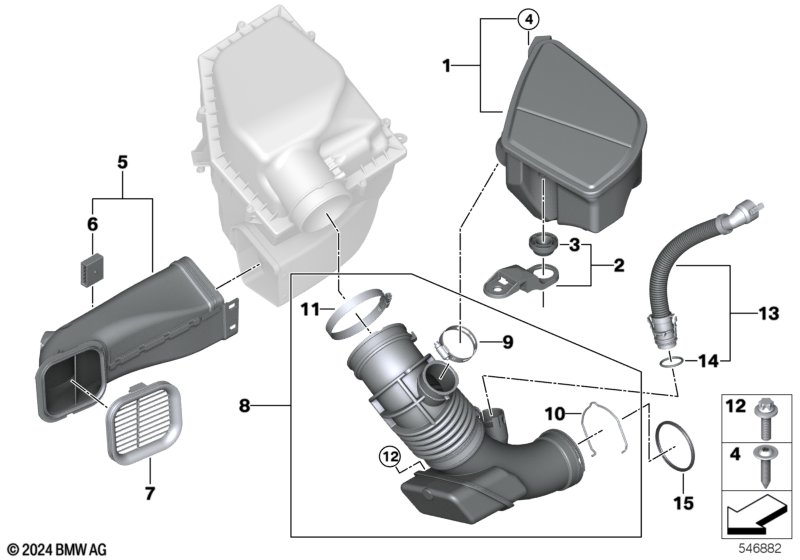

This Air duct technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Resonator | 1 | 13718591849 | Shop at ECS Tuning | ||||||
| 02 | Resonator holder | 1 | 13718623292 | Shop at ECS Tuning | ||||||
| 03 | Rubber Mounting | 1 | 13718620471 | Shop at ECS Tuning | ||||||
| 04 | Torx-bolt for plastic material | ISA L=22MM | 1 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Intake duct | 1 | 13718599683 | Shop at ECS Tuning | ||||||
| 06 | Rubber element | 1 | 13718651955 | Shop at ECS Tuning | ||||||
| 07 | Intake grill | 1 | 13717643298 | Shop at ECS Tuning | ||||||
| 08 | Filtered air pipe | 1 | 13718587573 | Shop at ECS Tuning | ||||||
| 09 | Hose clamp | P28 | 1 | 13718651956 | Shop at ECS Tuning | |||||
| 10 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | D 88,8 - D 99,5 | 1 | 13718651957 | Shop at ECS Tuning | |||||
| 12 | Torx bolt | BM6X20-8.8-ZNS3 | 1 | 07119907243 | Shop at ECS Tuning | |||||
| 13 | Pipe | 1 | 13718580252 | Shop at ECS Tuning | ||||||
| 14 | O-ring | 26X3 | 1 | 13718473143 | Shop at ECS Tuning | |||||
| 15 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning |
