Fuel inject.syst./Diesel high-press.pump for BMW 5 Series E39 525d (2003)

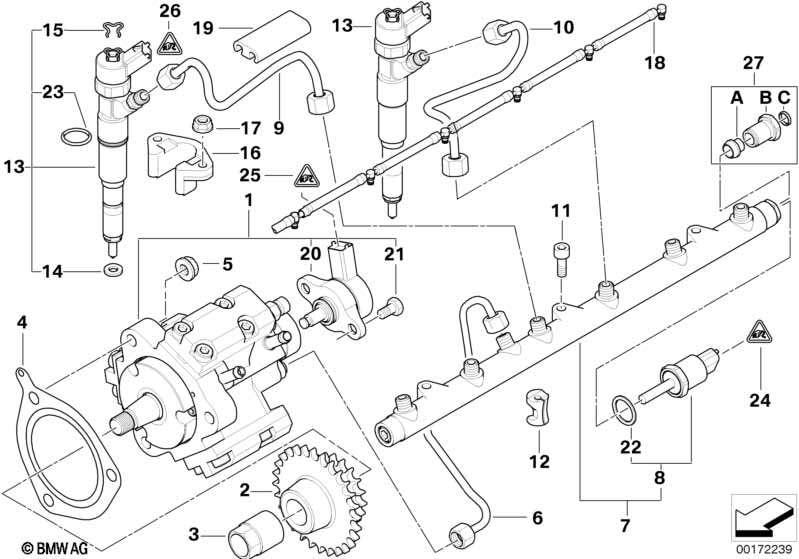

This Fuel inject.syst./Diesel high-press.pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rape methyl ester version (RME) |
S201A=No |
|||||||||
| 01 | High-pressure pump | 1 | 01/2001 | 13517787632 | $1177.83 | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 01 | High-pressure pump | 1 | 01/2001 | 13517787632 | $1177.83 | Shop at ECS Tuning | ||||
| 02 | Sprocket high-pressure pump | 1 | 13522247053 | Shop at ECS Tuning | ||||||
| 03 | Hexagon nut with collar | M14X1,5 | 1 | 13522247623 | $2.37 | Shop at ECS Tuning | ||||
| 04 | Gasket Steel | 1 | 13512247847 | $4.38 | Shop at ECS Tuning | |||||
| 05 | Hex nut with plate | M8-ZNS3 | 3 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Pressure hose assy | 1 | 13537804234 | Shop at ECS Tuning | ||||||
| 07 | Pressure accumulator | 1 | 13537805722 | Shop at ECS Tuning | ||||||
| See repair manual | ||||||||||
| 08 | Pressure sensor | 1 | 13537812345 | $272.40 | Shop at ECS Tuning | |||||
| includes A and C | ||||||||||
| 09 | Pressure hose assy | 3 | 13537804235 | Shop at ECS Tuning | ||||||
| Only applies to cylinder 1, 3, 5 | ||||||||||
| 10 | Pressure hose assy | 3 | 13537804236 | Shop at ECS Tuning | ||||||
| Only applies to cylinder 2, 4, 6 | ||||||||||
| 11 | Hex bolt with washer | M8X38-Z1 | 3 | 07119901536 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 1 | 13532248576 | $3.40 | Shop at ECS Tuning | |||||
| 13 | Injector | 6 | 13537785985 | Shop at ECS Tuning | ||||||
| 14 | Gasket ring | 6 | 03/2000 | 13537785722 | Shop at ECS Tuning | |||||
| 15 | Clamp | 6 | 13532247856 | $7.82 | Shop at ECS Tuning | |||||
| 16 | Flange | 6 | 13537787215 | Shop at ECS Tuning | ||||||
| 17 | Flange nut | M6 | 12 | 13537801713 | $0.23 | Shop at ECS Tuning | ||||
| 18 | Overflow oil line | 1 | 13537789607 | $44.35 | Shop at ECS Tuning | |||||
| 19 | Line damper | 3 | 13532354031 | Shop at ECS Tuning | ||||||
| 20 | Pressure regulating valve | 1 | 01/1999 | 13517787537 | $262.57 | Shop at ECS Tuning | ||||
| 21 | Fillister-head screw | M6X16 | 2 | 01/1999 | 13517781477 | Shop at ECS Tuning | ||||
| 22 | Washer-gasket | 1 | 13537786471 | Shop at ECS Tuning | ||||||
| 23 | O-ring | 22X2 | 6 | 09/2000 | 13537787236 | $3.75 | Shop at ECS Tuning | |||
| 24 | Plug housing | X | 12512247472 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 MM² | 1 | 12512247474 | $2.03 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1,5 - 2,5 MM² | 1 | 12512247475 | $2.03 | Shop at ECS Tuning | ||||
| 25 | Plug housing | 2 POL. | X | 01/1999 | 12512247471 | $5.13 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 MM² | 1 | 01/1999 | 12512247474 | $2.03 | Shop at ECS Tuning | |||
| -- | Bushing contact | 1,5 - 2,5 MM² | 1 | 01/1999 | 12512247475 | $2.03 | Shop at ECS Tuning | |||
| 26 | Plug housing | 2 POL. | 1 | 12512247471 | $5.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 MM² | 1 | 12512247474 | $2.03 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1,5 - 2,5 MM² | 1 | 12512247475 | $2.03 | Shop at ECS Tuning | ||||
| See repair manual | ||||||||||
| 27 | Assembly kit | 1 | 13537812381 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
