Throttle Housing Assy for BMW 5 Series E39 540i (2003)

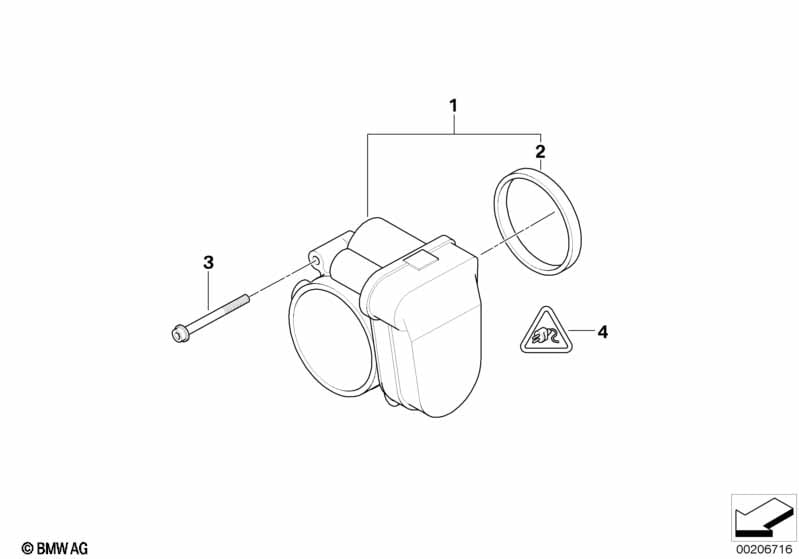

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 09/1998 | 13541435959 | $362.72 | Shop at ECS Tuning | ||||
| 02 | Profile-gasket | 1 | 09/1998 | 13547510433 | $11.12 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X50-ZNNIV SI | 4 | 09/1998 | 07119905377 | $0.53 | Shop at ECS Tuning | |||
| 04 | Universal socket housing uncoded | 6 POL. | 1 | 09/1998 | 61138383300 | $3.47 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 09/1998 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
