Valves/Pipes of fuel injection system for BMW 5 Series E39 530i (2003)

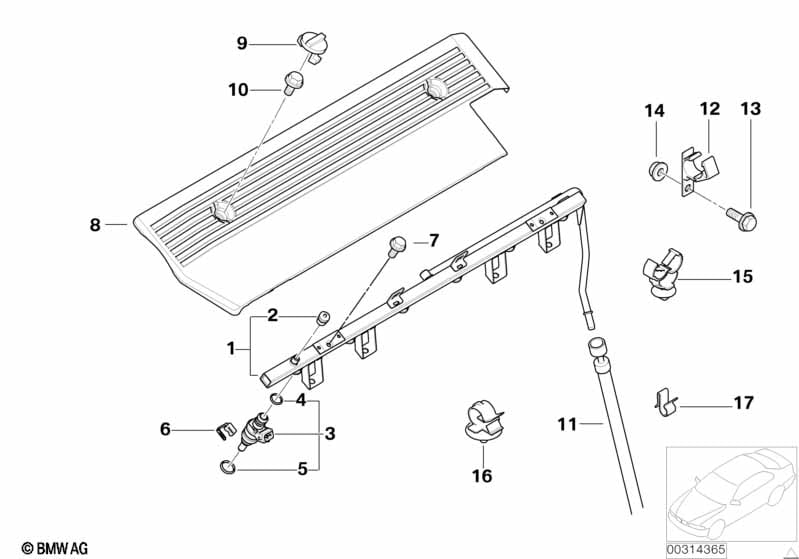

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13537541452 | $81.63 | Shop at ECS Tuning | |||||
| 02 | Cap | 1 | 13531427069 | $1.03 | Shop at ECS Tuning | |||||
| 03 | Injection valve | 6 | 13537546245 | $122.42 | Shop at ECS Tuning | |||||
| 04 | O-ring | 7,52X3,52 | 6 | 13641437487 | $3.75 | Shop at ECS Tuning | ||||
| 05 | O-ring | 9,2X2,8 | 6 | 13641437486 | $3.75 | Shop at ECS Tuning | ||||
| 06 | Clamp | 6 | 13537528539 | $0.58 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 13531707404 | $23.58 | Shop at ECS Tuning | |||||
| 09 | Cap | 2 | 11121726089 | $2.12 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 1 | 13311744100 | $44.77 | Shop at ECS Tuning |
