Exhaust sensors for BMW 7 Series G12 LCI 730LdX (2020)

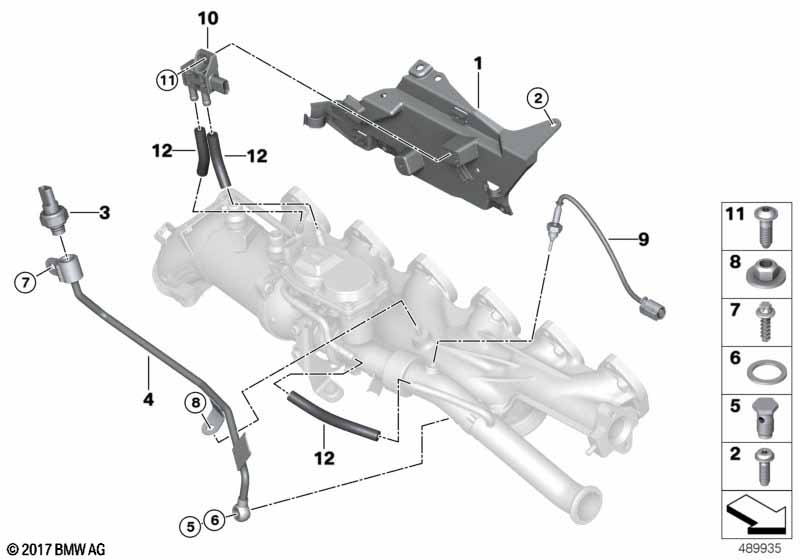

This Exhaust sensors technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sensor holder | 1 | 13628571779 | Shop at ECS Tuning | ||||||
| 02 | Screw | 6X20 | 4 | 07129907489 | Shop at ECS Tuning | |||||
| 03 | Exhaust pressure sensor | 1 | 13628570936 | Shop at ECS Tuning | ||||||
| 04 | Pipe, backpressure | 1 | 13628571783 | Shop at ECS Tuning | ||||||
| 05 | Hollow bolt | M12X1,5 | 1 | 13627811933 | $6.15 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A12X15,5 | 2 | 13627811934 | $0.52 | Shop at ECS Tuning | ||||
| 07 | screw for plastic | TS6X20-F-A2-70 | 1 | 13628582284 | Shop at ECS Tuning | |||||
| 09 | EGR temperature sensor | L=216MM | 1 | 13628576316 | Shop at ECS Tuning | |||||
| 10 | Differential pressure sensor | 1 | 13628579353 | Shop at ECS Tuning | ||||||
| 11 | Torx-bolt for plastic material | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning | |||||
| 12 | Hose | 7.3X2 | X | 13628591459 | Shop at ECS Tuning |
