Air duct for BMW 3 Series G21 Touring 320e (2022)

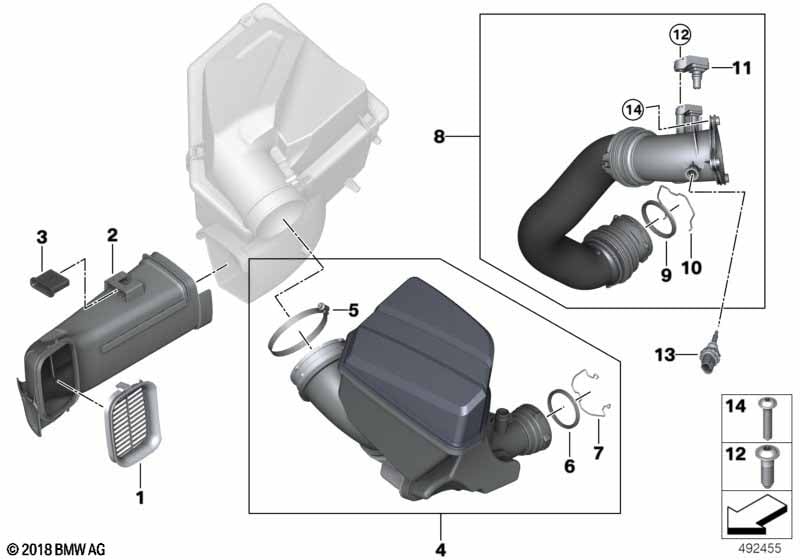

This Air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake grill | 1 | 13718580421 | Shop at ECS Tuning | ||||||
| 02 | Intake duct | 1 | 13718635103 | Shop at ECS Tuning | ||||||
| 03 | Rubber element | 1 | 13718488035 | Shop at ECS Tuning | ||||||
| 04 | Filtered air pipe with resonator | 1 | 13718656981 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 06 | Preformed seal | 1 | 13717601067 | Shop at ECS Tuning | ||||||
| 07 | Spring clip | 1 | 13718637816 | Shop at ECS Tuning | ||||||
| 08 | Charge air line | 1 | 13718601683 | Shop at ECS Tuning | ||||||
| 09 | Preformed seal | 1 | 13718642240 | Shop at ECS Tuning | ||||||
| 10 | Spring clip | 1 | 13718642239 | Shop at ECS Tuning | ||||||
| 11 | Sensor, charge-air pressure | 1 | 13628637896 | Shop at ECS Tuning | ||||||
| 12 | Screw | 5X20 | 1 | 07129908739 | Shop at ECS Tuning | |||||
| 13 | Temperature sensor | 1 | 13628626176 | Shop at ECS Tuning | ||||||
| 14 | Screw | 6X33 | 3 | 13718677692 | Shop at ECS Tuning |
