Intake muffler/Filter cartridge/HFM for BMW 3 Series G21 Touring LCI M340dX (2024)

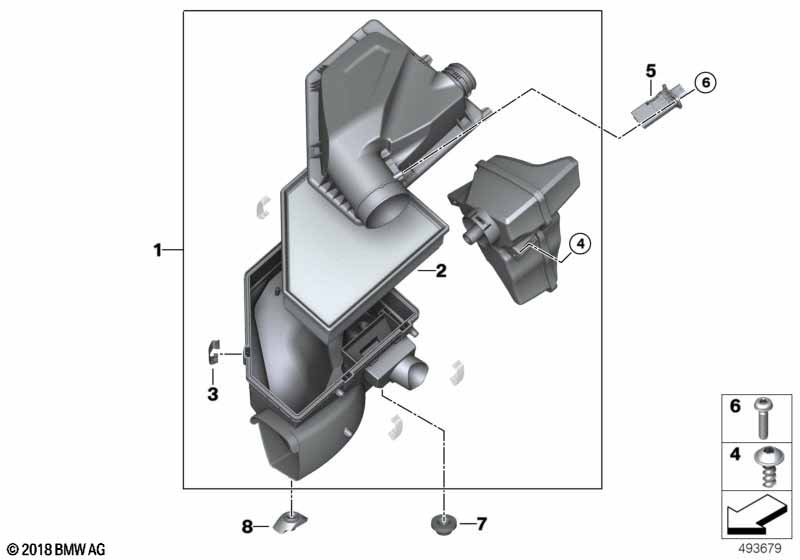

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13718598277 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13718594535 | Shop at ECS Tuning | ||||||
| 03 | Spring clip | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | screw for plastic | TS5X12-ZNS3 | 2 | 07147194471 | $0.34 | Shop at ECS Tuning | ||||
| 05 | Hot-film air mass meter | 1 | 13628580022 | Shop at ECS Tuning | ||||||
| 06 | Screw | 4X16 | 2 | 07129907551 | Shop at ECS Tuning | |||||
| 07 | Bump stop | 2 | 13717625238 | Shop at ECS Tuning | ||||||
| 08 | Bracket. intake silencer | 1 | 13718635105 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI M340dX Intake muffler/Filter cartridge/HFM?
- This technical diagram illustrates the Intake muffler/Filter cartridge/HFM within the Fuel preparation system group for the 3 Series G21 Touring LCI M340dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13718598277).
- Which models use the hardware listed in this Intake muffler/Filter cartridge/HFM?
- The hardware and components featured in the Intake muffler/Filter cartridge/HFM are specific to the 3 Series G21 Touring LCI M340dX produced during 2024. These technical specifications ensure that parts like the Intake muffler (13718598277) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake muffler/Filter cartridge/HFM assembly?
- Each item in the Intake muffler/Filter cartridge/HFM corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI M340dX, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13718598277 for the Fuel preparation system section.
