Throttle Housing Assy for BMW 7 Series G11 LCI 740i (2022)

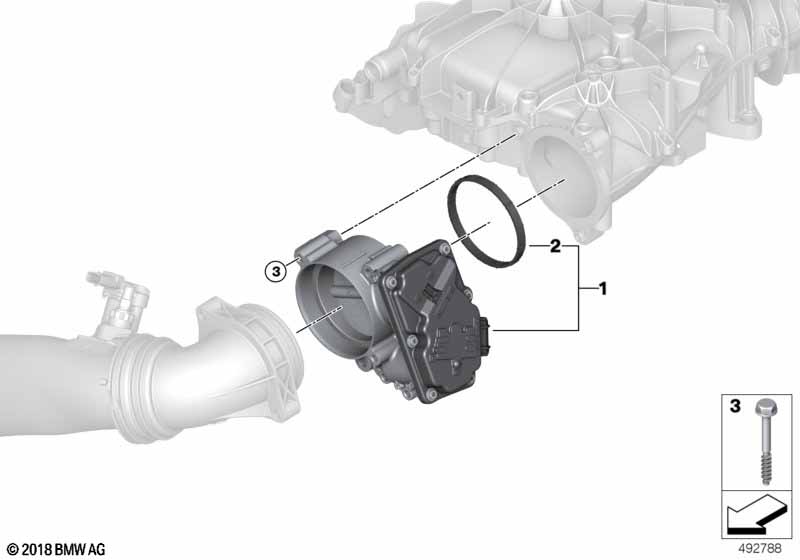

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 13548667415 | Shop at ECS Tuning | ||||||
| 02 | Gasket | 1 | 13548632344 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | 6,0X50 | 3 | 13547561349 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 740i Throttle Housing Assy?
- This technical diagram illustrates the Throttle Housing Assy within the Fuel preparation system group for the 7 Series G11 LCI 740i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13548667415).
- Which models use the hardware listed in this Throttle Housing Assy?
- The hardware and components featured in the Throttle Housing Assy are specific to the 7 Series G11 LCI 740i produced during 2022. These technical specifications ensure that parts like the Throttle Housing Assy (13548667415) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle Housing Assy assembly?
- Each item in the Throttle Housing Assy corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 740i, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13548667415 for the Fuel preparation system section.
