Fuel pipes / Mounting parts for BMW 3 Series G20 Sedan LCI M340dX (2024)

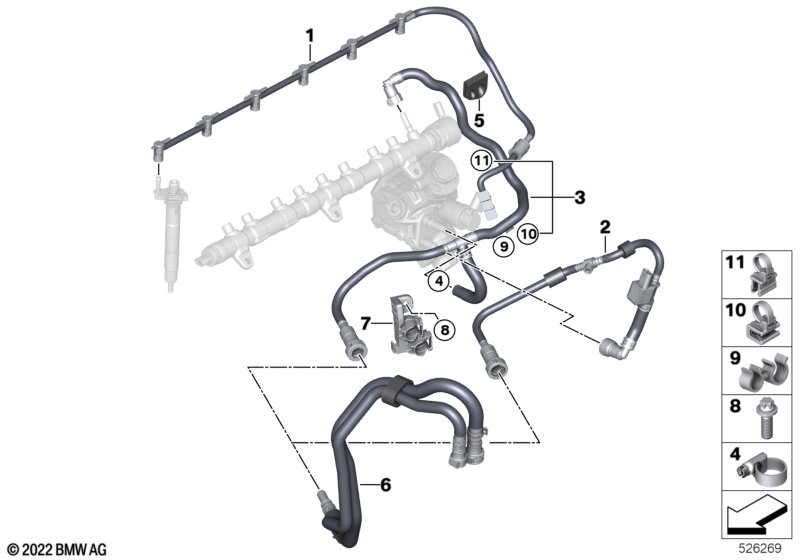

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Overflow oil line | 1 | 13538597176 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line with sensor | 1 | 13538598158 | Shop at ECS Tuning | ||||||
| 03 | Fuel return line | 1 | 13538598157 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L15-18 | 1 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 05 | Grommet | 1 | 13537801976 | Shop at ECS Tuning | ||||||
| 06 | Fuel line, engine compartment | 1 | 13535A799E0 | NoS | Shop at ECS Tuning | |||||
| 07 | Fuel pipe bracket | 1 | 13538598166 | Shop at ECS Tuning | ||||||
| 08 | Star-socket screw | M6X16-ZNNIV SI | 1 | 07119907463 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | 1 | 13539885244 | Shop at ECS Tuning | ||||||
| 10 | Cable strap bracket | 1 | 61137562743 | $0.68 | Shop at ECS Tuning | |||||
| 11 | Cable strap bracket | 1 | 61137562742 | Shop at ECS Tuning |
