Exhaust-gas sensors / NOX sensor / SCR for BMW 3 Series G21 Touring LCI M340dX (2024)

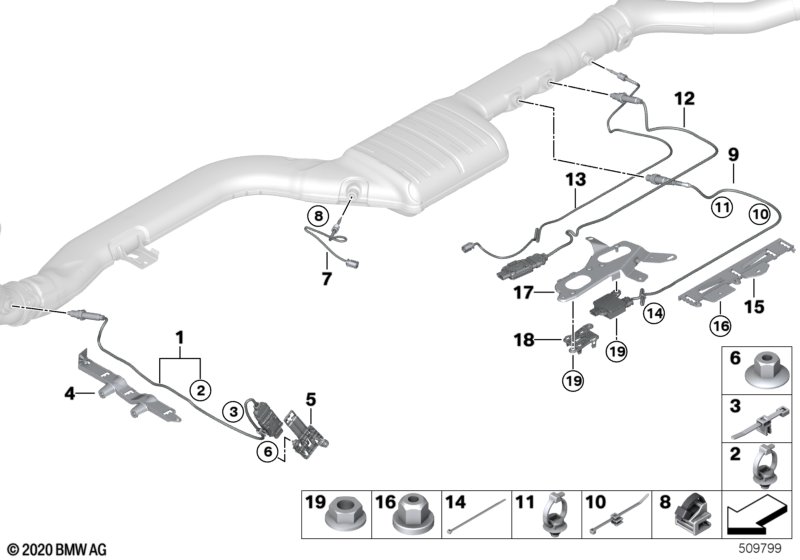

This Exhaust-gas sensors / NOX sensor / SCR technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | NOx sensor | 900MM | 1 | 07/2024 | 13627926310 | Shop at ECS Tuning | ||||
| 01 | NOx sensor | L=900MM | 1 | 13627822479 | Shop at ECS Tuning | |||||
| 02 | Cable strap with bracket | Ø=7,9 / L=150 | 2 | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| 03 | Cable strap with bracket | L=200MM | 1 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 04 | Bracket, NOX sensor cable | 1 | 13628470513 | Shop at ECS Tuning | ||||||
| 05 | Bracket, control module for NOX | 1 | 13628591639 | Shop at ECS Tuning | ||||||
| 06 | Plastic nut for coarse threaded pin | 2 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 07 | Temperature sensor, exhaust | L=340 | 1 | 13628476482 | Shop at ECS Tuning | |||||
| 08 | Cable strap bracket | 2 | 61137562743 | $0.68 | Shop at ECS Tuning | |||||
| 09 | diesel particulate sensor | L=1000MM | 1 | 13628490745 | Shop at ECS Tuning | |||||
| Note: The vehicle needs I level 23-07-500 or above! |
||||||||||
| 10 | Cable strap with bracket | L=200MM | 2 | 61136918644 | $0.92 | Shop at ECS Tuning | ||||
| 11 | Cable strap with bracket | Ø=7,9 / L=150 | 1 | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| 12 | NOX sensor | L=1100MM | 1 | 07/2024 | 13628476457 | Shop at ECS Tuning | ||||
| 12 | NOx sensor | L=1000MM | 1 | 13627822482 | Shop at ECS Tuning | |||||
| 13 | Temperature sensor, exhaust | L=1150 | 1 | 13628478162 | Shop at ECS Tuning | |||||
| 14 | Wire tape, outside serrations | L=150MM/B=4,6MM | 1 | 61136915978 | $0.23 | Shop at ECS Tuning | ||||
| 15 | Bracket, NOX / sensor PM cable | 1 | 13628573934 | Shop at ECS Tuning | ||||||
| 16 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Bracket for control modules | 1 | 13628570053 | Shop at ECS Tuning | ||||||
| 18 | Bracket, control module for NOX | 1 | 13628576338 | Shop at ECS Tuning | ||||||
| 19 | Hex nut with plate | M6-8-ZNNIV SI | 7 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
