Diesel part.filter sens./mounting parts for BMW 8 Series G16 Gran Coupé 840dX (2025)

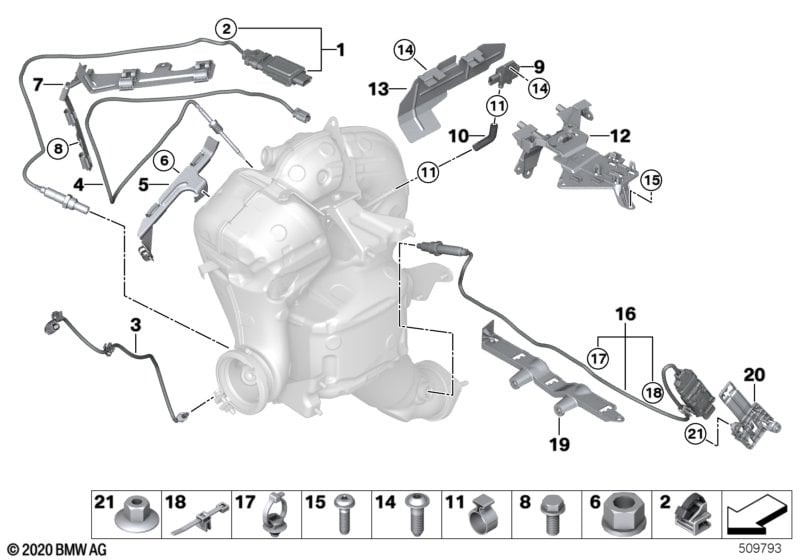

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | NOX sensor | L=800MM | 1 | 13628490431 | Shop at ECS Tuning | |||||
| 02 | Cable strap bracket | 1 | 61137562743 | $0.68 | Shop at ECS Tuning | |||||
| 03 | Temperature sensor, exhaust | L=526 | 1 | 13628490145 | Shop at ECS Tuning | |||||
| 04 | Temperature sensor, exhaust | L=865 | 1 | 13628490146 | Shop at ECS Tuning | |||||
| 05 | Sensor holder | 1 | 13628596825 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | AM6-A2-70 | 1 | 07129905826 | $2.61 | Shop at ECS Tuning | ||||
| 07 | Bracket, cable, NOX / temperature sensor | 1 | 13628596824 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X16-U1-A2-70 | 2 | 07119905413 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Differential pressure sensor | 100KPA | 1 | 07/2026 | 13628490050 | Shop at ECS Tuning | ||||
| 10 | Hose | 2 | 13628599063 | Shop at ECS Tuning | ||||||
| 11 | Hose clamp | 10-12 | 4 | 32411131373 | Shop at ECS Tuning | |||||
| 12 | Holder for exhaust recirculation sensors | 1 | 13628599057 | Shop at ECS Tuning | ||||||
| 13 | Heat shield | 1 | 13628599060 | Shop at ECS Tuning | ||||||
| 14 | Torx-bolt for plastic material | TS5X20 | 3 | 07119907480 | Shop at ECS Tuning | |||||
| 15 | Screw | 6X20 | 5 | 07129907489 | Shop at ECS Tuning | |||||
| 16 | NOx sensor | 900MM | 1 | 13627926310 | Shop at ECS Tuning | |||||
| 17 | Cable strap with bracket | Ø=7,9 / L=150 | 2 | 61138375988 | $0.37 | Shop at ECS Tuning | ||||
| 18 | Cable strap with bracket | L=200MM | 1 | 61136916946 | $1.58 | Shop at ECS Tuning | ||||
| 19 | Bracket, NOX sensor cable | 1 | 13628470513 | Shop at ECS Tuning | ||||||
| 20 | Bracket, control module for NOX | 1 | 13628591639 | Shop at ECS Tuning | ||||||
| 21 | Plastic nut for coarse threaded pin | 2 | 16131183133 | $0.37 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé 840dX Diesel part.filter sens./mounting parts?
- This technical diagram illustrates the Diesel part.filter sens./mounting parts within the Fuel preparation system group for the 8 Series G16 Gran Coupé 840dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the NOX sensor (Part #13628490431).
- Which models use the hardware listed in this Diesel part.filter sens./mounting parts?
- The hardware and components featured in the Diesel part.filter sens./mounting parts are specific to the 8 Series G16 Gran Coupé 840dX produced during 2025. These technical specifications ensure that parts like the NOX sensor (13628490431) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Diesel part.filter sens./mounting parts assembly?
- Each item in the Diesel part.filter sens./mounting parts corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé 840dX, you can identify the NOX sensor by locating its position on the schematic, which then links to the official BMW part number 13628490431 for the Fuel preparation system section.
