Intake noise attenuator / air duct for BMW 1 Series F70 120 (2025)

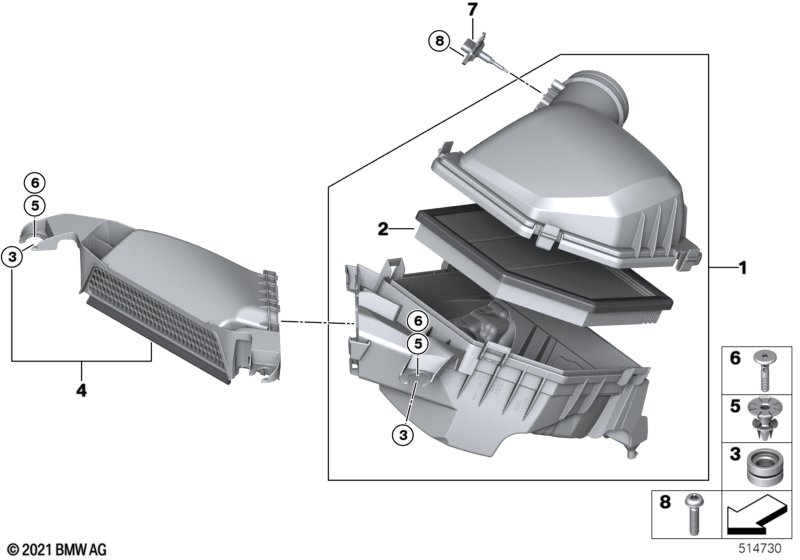

This Intake noise attenuator / air duct technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13718489428 | NoS | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 07/2024 | 13719468656 | Shop at ECS Tuning | |||||
| 03 | Decoupling element | 3 | 13715A23215 | Shop at ECS Tuning | ||||||
| 04 | Air-intake duct | 1 | 13718472018 | Shop at ECS Tuning | ||||||
| 05 | Spacer clip | 3 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 06 | Pin | 3 | 07147122913 | $0.23 | Shop at ECS Tuning | |||||
| 07 | Intake air temperature sensor | 1 | 13628485041 | Shop at ECS Tuning | ||||||
| 08 | Screw | 4X16 | 2 | 07129907551 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F70 120 Intake noise attenuator / air duct?
- This technical diagram illustrates the Intake noise attenuator / air duct within the Fuel preparation system group for the 1 Series F70 120 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13718489428).
- Which models use the hardware listed in this Intake noise attenuator / air duct?
- The hardware and components featured in the Intake noise attenuator / air duct are specific to the 1 Series F70 120 produced during 2025. These technical specifications ensure that parts like the Intake muffler (13718489428) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake noise attenuator / air duct assembly?
- Each item in the Intake noise attenuator / air duct corresponds to the numbered list below the illustration. For the 1 Series F70 120, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13718489428 for the Fuel preparation system section.
