Low-pressure rail / injector for BMW 2 Series F74 Gran Coupé 220 (2025)

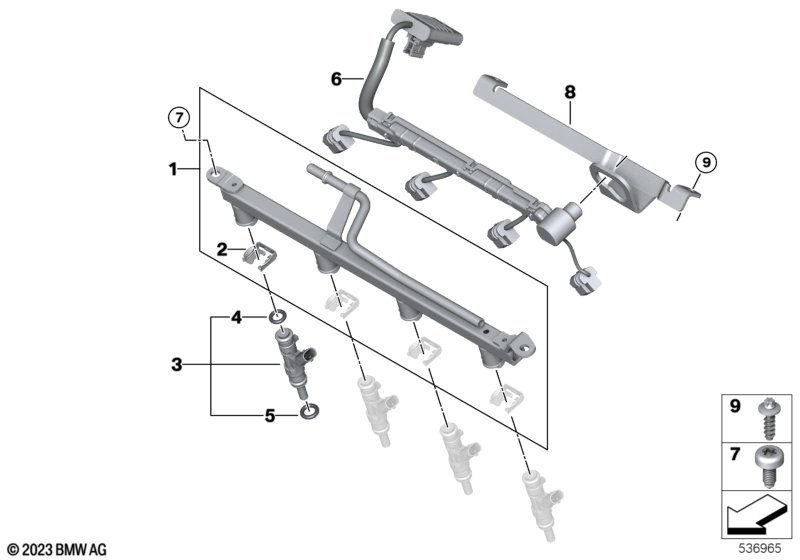

This Low-pressure rail / injector technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Low-pressure rail | 1 | 13535A9E128 | NoS | Shop at ECS Tuning | |||||
| 02 | Fixing clamp | 4 | 13535A19BB3 | Shop at ECS Tuning | ||||||
| 03 | Injector | 4 | 13538483304 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 7,52X3,51 | 4 | 13641437476 | Shop at ECS Tuning | |||||
| 05 | O-ring | 8,3X3,05 | 4 | 13647675557 | $3.10 | Shop at ECS Tuning | ||||
| 06 | Adapter cable low-pressure rail | 1 | 12515A7A0E9 | NoS | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | 2 | 07149149705 | $0.27 | Shop at ECS Tuning | |||||
| 08 | Crashschutzblech | 1 | 13535A9CC07 | Shop at ECS Tuning | ||||||
| 09 | ASA screw, self-threading | M6X18 | 2 | 11367609963 | Shop at ECS Tuning |
