High pressure accumulator/injector/line for BMW 1 Series F70 120d (2025)

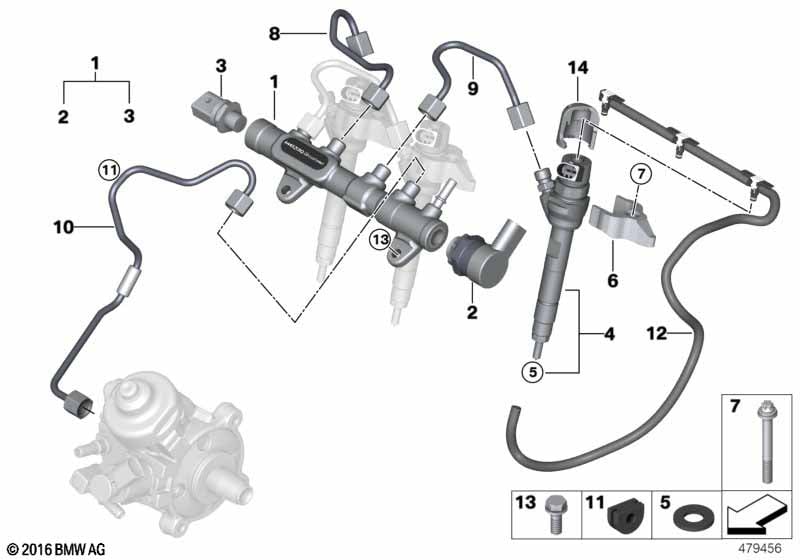

This High pressure accumulator/injector/line technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 1 | 13538472216 | Shop at ECS Tuning | ||||||
| 02 | Pressure regulating valve | 1 | 13538472244 | Shop at ECS Tuning | ||||||
| 03 | Pressure sensor | 1 | 13538472245 | Shop at ECS Tuning | ||||||
| 04 | Injector | 4 | 13538472208 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Injector lubricating grease | 50G | 4 | 83238854223 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | 4 | 13532247156 | $3.63 | Shop at ECS Tuning | |||||
| 06 | Clamping jaw, injector | 4 | 13537809798 | Shop at ECS Tuning | ||||||
| 07 | Screw | 4 | 13537805256 | Shop at ECS Tuning | ||||||
| 08 | Pressure hose assy | 2 | 13538579244 | Shop at ECS Tuning | ||||||
| 09 | Pressure hose assy | 2 | 13538472971 | Shop at ECS Tuning | ||||||
| 10 | Pressure hose assy | 1 | 13538472218 | Shop at ECS Tuning | ||||||
| 11 | Grommet | 1 | 13537812876 | Shop at ECS Tuning | ||||||
| 12 | Leaked oil line | 1 | 13538598151 | Shop at ECS Tuning | ||||||
| 13 | Star-socket screw | M8X25 | 3 | 07119907174 | Shop at ECS Tuning | |||||
| 14 | Cov.panel leakage oil connecting branch | 1 | 13538597629 | Shop at ECS Tuning | ||||||
