Fuel tank breather valve for BMW 3 Series F34 GT LCI 330i (2019)

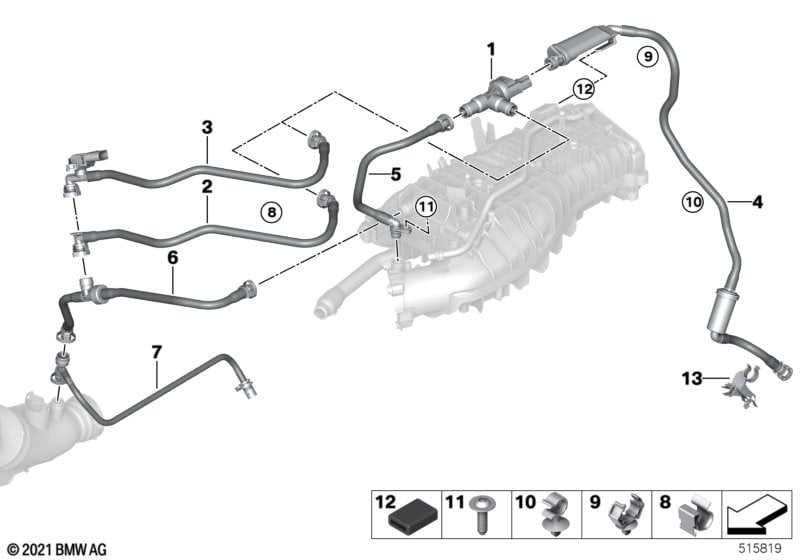

This Fuel tank breather valve technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 1 | 13907643106 | Shop at ECS Tuning | ||||||
| 02 | fuel tank breather line | 1 | 13907645858 | Shop at ECS Tuning | ||||||
| 04 | Fuel tank breath.line with resonator | 1 | 13908663476 | Shop at ECS Tuning | ||||||
| 05 | fuel tank breather line | 1 | 13907645857 | Shop at ECS Tuning | ||||||
| 06 | Suction jet pump with line | 1 | 13908605160 | Shop at ECS Tuning | ||||||
| 07 | Scavenge air line | 1 | 11158645343 | Shop at ECS Tuning | ||||||
| 08 | Fixing clamp | D=12-14/B=5 | 1 | 12527578321 | $1.08 | Shop at ECS Tuning | ||||
| 09 | Tubing support | 1 | 13547714512 | Shop at ECS Tuning | ||||||
| 10 | Hose clamp | D=11-13MM | 1 | 32737714099 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Tubing support | 1 | 11/2017 | 13908655622 | Shop at ECS Tuning |
