Throttle Housing Assy for BMW 6 Series E64 M6 (2010)

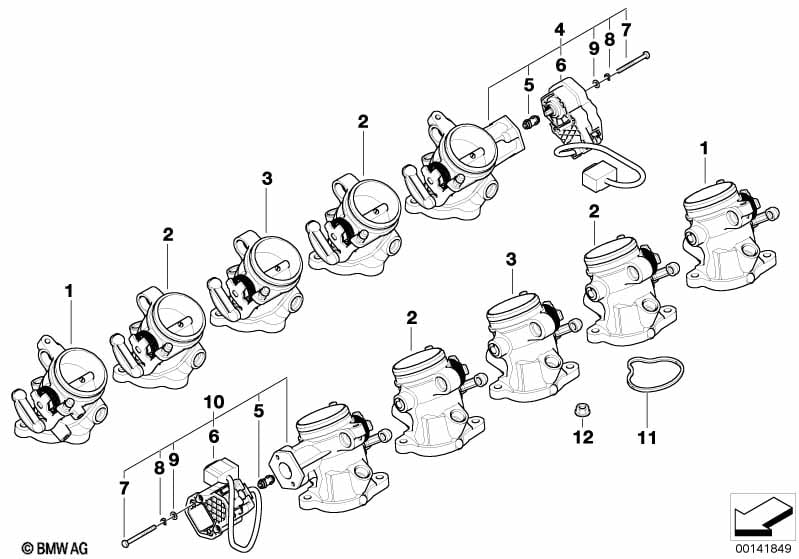

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 2 | 13547834831 | $389.90 | +core | Shop at ECS Tuning | ||||
| 02 | Throttle Housing Assy | 4 | 13547834832 | $389.90 | +core | Shop at ECS Tuning | ||||
| 03 | Throttle Housing Assy | 2 | 13547834833 | $389.90 | +core | Shop at ECS Tuning | ||||
| 04 | Throttle body with Hall sensor | 1 | 13547841814 | +core | Shop at ECS Tuning | |||||
| 05 | Clutch, hall sensor | 2 | 13547836099 | $10.52 | Shop at ECS Tuning | |||||
| 06 | Hall sensor | 2 | 13627841705 | $163.45 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M4X40 A2-70 | 4 | 07119905158 | $4.56 | Shop at ECS Tuning | ||||
| 08 | Wave washer | 4 | 13547834370 | $1.93 | Shop at ECS Tuning | |||||
| 09 | Washer | 4 | 13547834369 | $2.18 | Shop at ECS Tuning | |||||
| 10 | Throttle body with Hall sensor | 1 | 13547841815 | +core | Shop at ECS Tuning | |||||
| 11 | Profile-gasket | 10 | 13547834023 | $4.48 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | AM7 ZNNIV SI | 20 | 07129905541 | $0.64 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 M6 Throttle Housing Assy?
- This technical diagram illustrates the Throttle Housing Assy within the Fuel preparation system group for the 6 Series E64 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13547834831).
- Which models use the hardware listed in this Throttle Housing Assy?
- The hardware and components featured in the Throttle Housing Assy are specific to the 6 Series E64 M6 produced during 2010. These technical specifications ensure that parts like the Throttle Housing Assy (13547834831) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle Housing Assy assembly?
- Each item in the Throttle Housing Assy corresponds to the numbered list below the illustration. For the 6 Series E64 M6, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13547834831 for the Fuel preparation system section.
