Fuel tank breather valve for BMW 6 Series E64 M6 (2010)

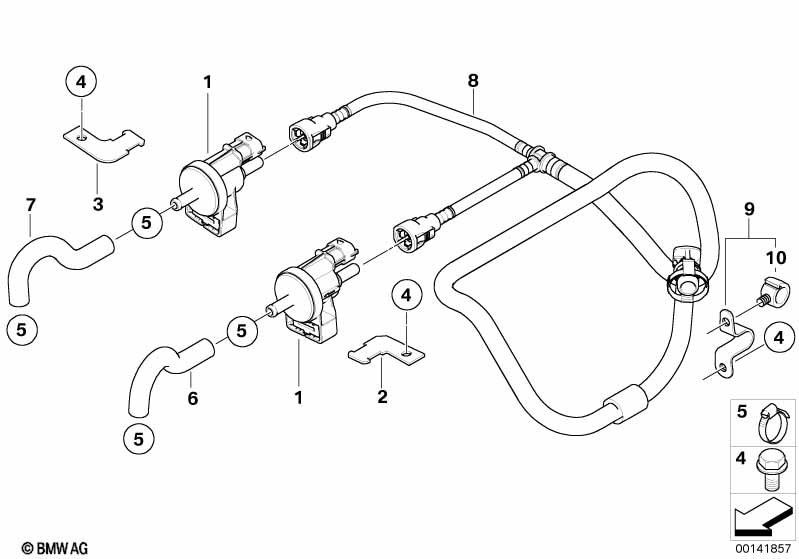

This Fuel tank breather valve technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 2 | 13907835364 | $82.88 | Shop at ECS Tuning | |||||
| 02 | Bracket ventilation valve | 1 | 13907835914 | $11.80 | Shop at ECS Tuning | |||||
| 03 | Bracket ventilation valve | 1 | 13907836184 | $11.80 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 12,8-15,3 | 4 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Hose elbow | 1 | 13907835912 | $11.10 | Shop at ECS Tuning | |||||
| 07 | Hose elbow | 1 | 13907835913 | $11.10 | Shop at ECS Tuning | |||||
| 08 | Pipe | 1 | 13907835915 | $209.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 M6 Fuel tank breather valve?
- This technical diagram illustrates the Fuel tank breather valve within the Fuel preparation system group for the 6 Series E64 M6 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank breather valve (Part #13907835364).
- Which models use the hardware listed in this Fuel tank breather valve?
- The hardware and components featured in the Fuel tank breather valve are specific to the 6 Series E64 M6 produced during 2010. These technical specifications ensure that parts like the Fuel tank breather valve (13907835364) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank breather valve assembly?
- Each item in the Fuel tank breather valve corresponds to the numbered list below the illustration. For the 6 Series E64 M6, you can identify the Fuel tank breather valve by locating its position on the schematic, which then links to the official BMW part number 13907835364 for the Fuel preparation system section.
