Intake muffler/Filter cartridge/HFM for BMW 7 Series G70 735i (2025)

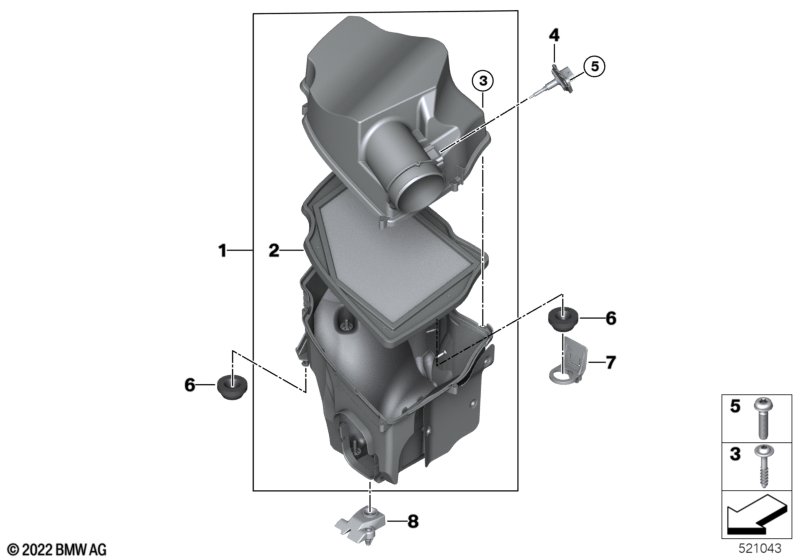

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13715A1BC41 | Shop at ECS Tuning | ||||||
| 02 | Filter cartridge | 1 | 13715A1BC51 | Shop at ECS Tuning | ||||||
| 03 | Torx screw | 5X26 | 6 | 07129908744 | Shop at ECS Tuning | |||||
| 04 | Intake air temperature sensor | 1 | 13628485041 | Shop at ECS Tuning | ||||||
| 05 | Screw | 4X16 | 2 | 07129907551 | Shop at ECS Tuning | |||||
| 06 | Rubber buffer | 2 | 13717571356 | $3.41 | Shop at ECS Tuning | |||||
| 07 | Bracket. intake silencer | 1 | 13715A1BC57 | Shop at ECS Tuning | ||||||
| 08 | Bracket. intake silencer | 1 | 13715A1BC55 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 735i Intake muffler/Filter cartridge/HFM?
- This technical diagram illustrates the Intake muffler/Filter cartridge/HFM within the Fuel preparation system group for the 7 Series G70 735i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13715A1BC41).
- Which models use the hardware listed in this Intake muffler/Filter cartridge/HFM?
- The hardware and components featured in the Intake muffler/Filter cartridge/HFM are specific to the 7 Series G70 735i produced during 2025. These technical specifications ensure that parts like the Intake muffler (13715A1BC41) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake muffler/Filter cartridge/HFM assembly?
- Each item in the Intake muffler/Filter cartridge/HFM corresponds to the numbered list below the illustration. For the 7 Series G70 735i, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13715A1BC41 for the Fuel preparation system section.
