Low-pressure rail / injector for BMW 7 Series G70 750eX (2024)

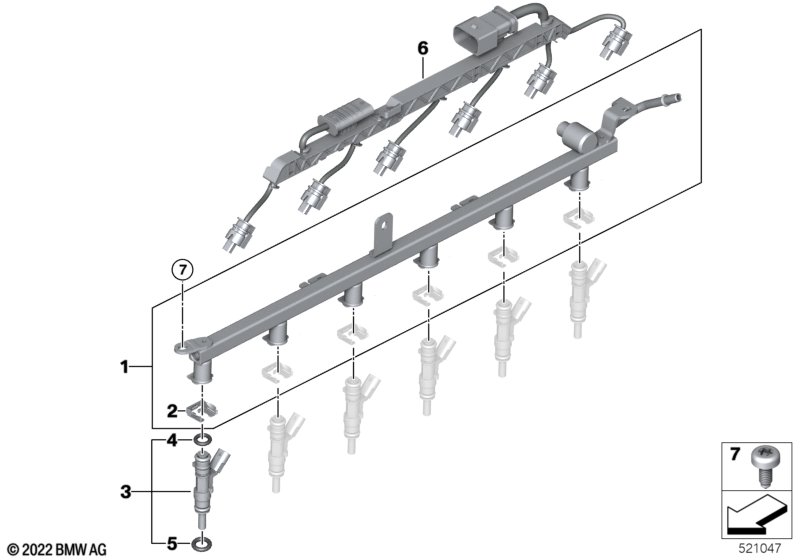

This Low-pressure rail / injector technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Low-pressure rail | 1 | 13535A13103 | Shop at ECS Tuning | ||||||
| 02 | Fixing clamp | 6 | 13535A19BB3 | Shop at ECS Tuning | ||||||
| 03 | Injector | 6 | 13538483304 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 7,52X3,51 | 6 | 13641437476 | Shop at ECS Tuning | |||||
| 05 | O-ring | 8,3X3,05 | 6 | 13647675557 | $3.10 | Shop at ECS Tuning | ||||
| 06 | Adapter cable low-pressure rail | 1 | 12515A2A792 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | 3 | 07149149705 | $0.27 | Shop at ECS Tuning |
