High-pressure pump/Tubing for BMW XM G09 XM (2025)

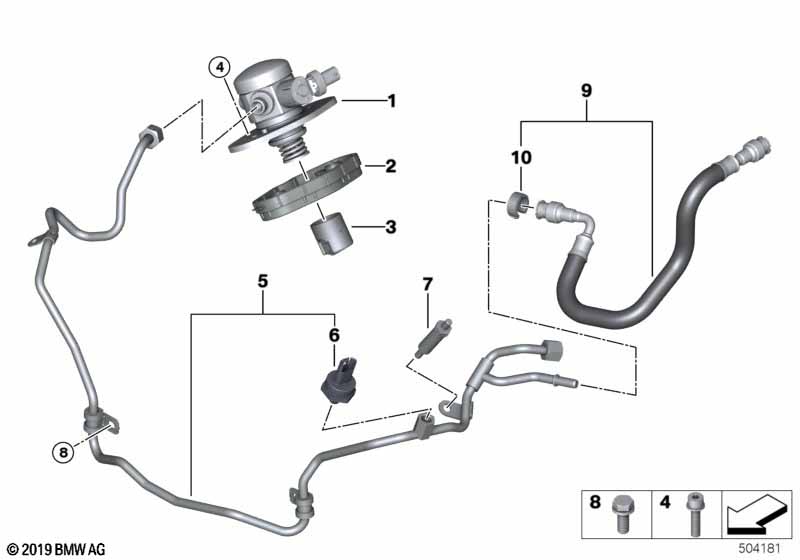

This High-pressure pump/Tubing technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | High-pressure pump | ZYL. 1-4 | 1 | 13518648176 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | High-pressure pump | ZYL. 5-8 | 1 | 13518648177 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | ISA screw | M6X33 | 1 | 13518098306 | Shop at ECS Tuning | |||||
| -- | Seal high-pressure pump | 1 | 11128071821 | Shop at ECS Tuning | ||||||
| 02 | Seal high-pressure pump | 2 | 11128071821 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | ISA screw | M6X33 | 2 | 13518098306 | Shop at ECS Tuning | |||||
| 03 | Cam follower | 2 | 11328629250 | Shop at ECS Tuning | ||||||
| 04 | ISA screw | M6X33 | 4 | 13518098306 | Shop at ECS Tuning | |||||
| 05 | Fuel pipe | 1 | 13538096112 | Shop at ECS Tuning | ||||||
| 06 | Sensor for low pressure | 1 | 13537622231 | Shop at ECS Tuning | ||||||
| 07 | Screw | 1 | 13538694096 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Inlet fuel hose | 1 | 13538699274 | Shop at ECS Tuning | ||||||
| 10 | Lock Ring | 1 | 13537530426 | $1.07 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM High-pressure pump/Tubing?
- This technical diagram illustrates the High-pressure pump/Tubing within the Fuel preparation system group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the High-pressure pump (Part #13518648176).
- Which models use the hardware listed in this High-pressure pump/Tubing?
- The hardware and components featured in the High-pressure pump/Tubing are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the High-pressure pump (13518648176) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-pressure pump/Tubing assembly?
- Each item in the High-pressure pump/Tubing corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the High-pressure pump by locating its position on the schematic, which then links to the official BMW part number 13518648176 for the Fuel preparation system section.
