Diesel part.filter sens./mounting parts for BMW 7 Series G70 740d (2023)

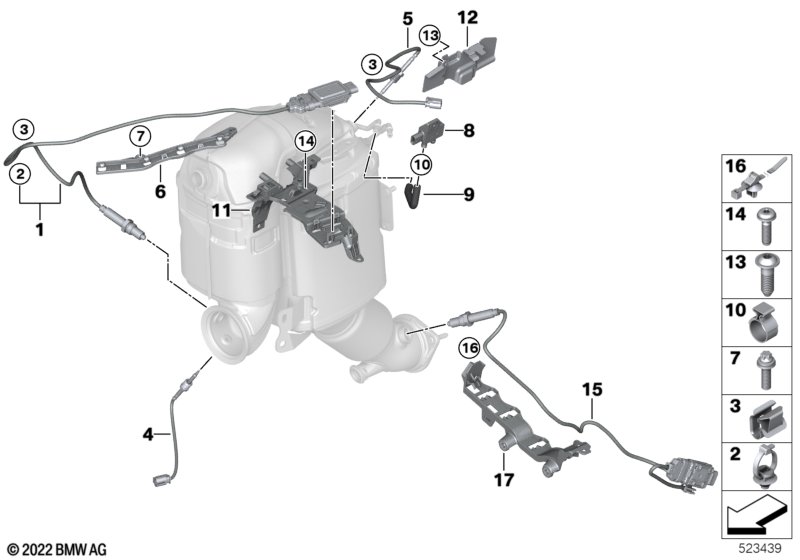

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | NOX sensor | L=1100MM | 1 | 13628476457 | Shop at ECS Tuning | |||||
| 02 | Cable strap with bracket | Ø=7,9 / L=200 | 1 | 61136914992 | $0.50 | Shop at ECS Tuning | ||||
| 03 | Clip | 3 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Exhaust temperature sensor | 185MM | 1 | 13628490564 | Shop at ECS Tuning | |||||
| 05 | Temperature sensor, exhaust | L=440MM | 1 | 13628478383 | Shop at ECS Tuning | |||||
| 06 | Cable routing exhaust gas sensor system | 1 | 13628490528 | Shop at ECS Tuning | ||||||
| 07 | Star-socket screw | M6X20-U1-8.8 | 1 | 07119908574 | Shop at ECS Tuning | |||||
| 08 | Differential pressure sensor | 1 | 13627926142 | Shop at ECS Tuning | ||||||
| 09 | Molded hose | 2 | 13628599064 | Shop at ECS Tuning | ||||||
| 10 | Hose clamp | 10-12 | 4 | 32411131373 | Shop at ECS Tuning | |||||
| 11 | Holder for exhaust recirculation sensors | 1 | 13628599058 | Shop at ECS Tuning | ||||||
| 12 | Heat shield | 1 | 13629887482 | Shop at ECS Tuning | ||||||
| 13 | Torx-bolt for plastic material | TS5X20 | 3 | 07119907480 | Shop at ECS Tuning | |||||
| 14 | Screw | 6X20 | 5 | 07129907489 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 15 | NOx sensor | 900MM | 1 | 07/2024 | 13627926310 | Shop at ECS Tuning | ||||
| 16 | Cable strap with bracket | L=200MM | 1 | 61139118958 | $0.37 | Shop at ECS Tuning | ||||
| 17 | Cable bracket | 1 | 13629887661 | Shop at ECS Tuning | ||||||
