Air duct for BMW 7 Series G70 740d (2022)

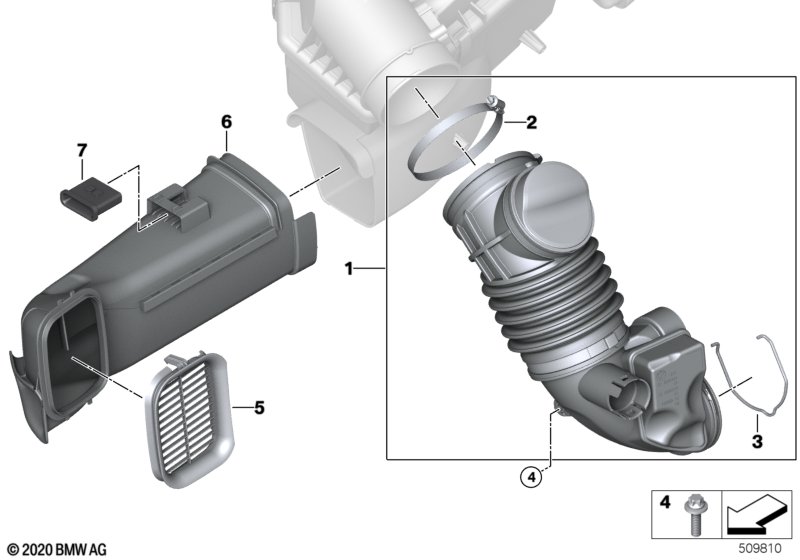

This Air duct technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clean air pipe | 1 | 13715A1BC60 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | 1 | 07119909530 | Shop at ECS Tuning | ||||||
| 03 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | BM6X20-8.8-ZNS3 | 1 | 07119907243 | Shop at ECS Tuning | |||||
| 05 | Intake grill | 1 | 13715A1BC25 | Shop at ECS Tuning | ||||||
| 06 | Intake port | 1 | 13715A1BC31 | Shop at ECS Tuning | ||||||
| 07 | Rubber element | 1 | 13718488035 | Shop at ECS Tuning |
