Intake muffler/Filter cartridge/HFM for BMW 5 Series G60 Sedan 520i (2025)

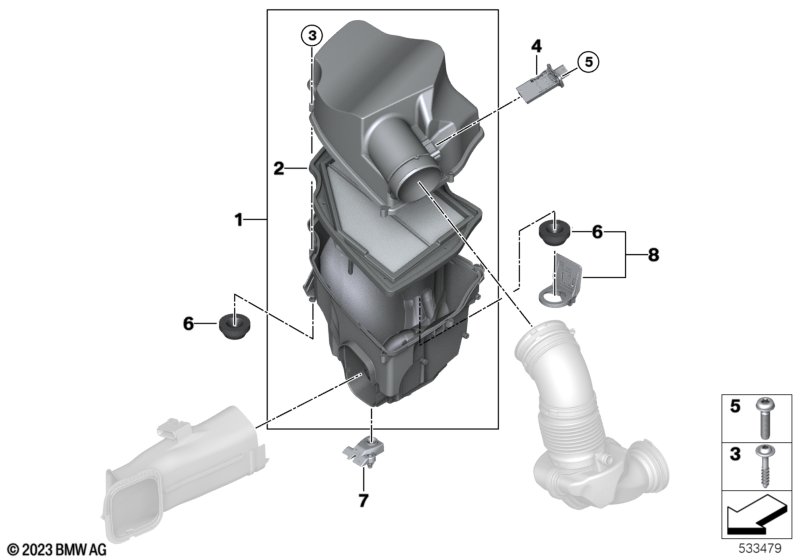

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake silencer | 1 | 13715A1BC40 | NoS | Shop at ECS Tuning | |||||
| 02 | Air filter insert | 1 | 13715A1BC47 | Shop at ECS Tuning | ||||||
| 03 | Torx screw | 5X26 | 6 | 07129908744 | Shop at ECS Tuning | |||||
| 04 | Intake air temperature sensor | 1 | 13628485041 | Shop at ECS Tuning | ||||||
| 05 | Screw | 4X16 | 2 | 07129907551 | Shop at ECS Tuning | |||||
| 06 | Rubber buffer | 2 | 13717571356 | $3.41 | Shop at ECS Tuning | |||||
| 07 | Bracket. intake silencer | 1 | 13715A1BC55 | Shop at ECS Tuning | ||||||
| 08 | Bracket. intake silencer | 1 | 13715A1BC57 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
