Tank EVAP vent valve / lines for BMW 3 Series G20 Sedan LCI M340i (2023)

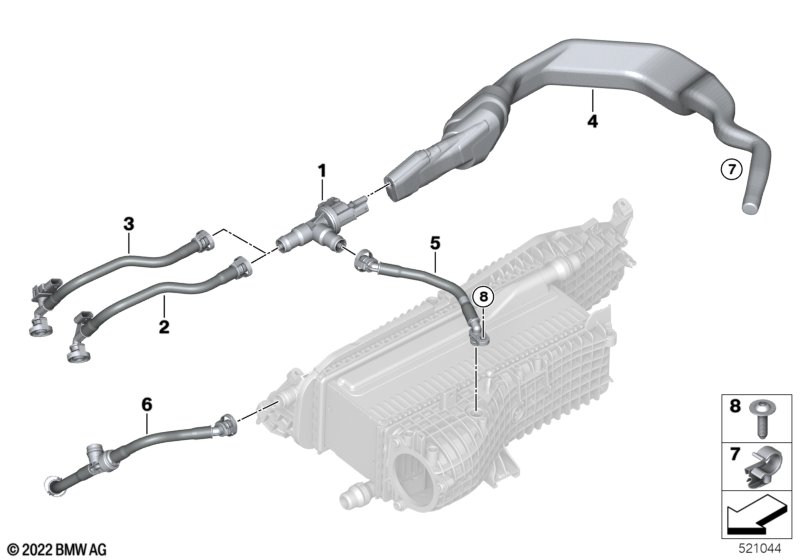

This Tank EVAP vent valve / lines technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 1 | 13907643106 | Shop at ECS Tuning | ||||||
| 03 | fuel tank breather line | 1 | 13909884343 | Shop at ECS Tuning | ||||||
| 04 | Tank EVAP line with pressure sensor | 1 | 13909452557 | NoS | Shop at ECS Tuning | |||||
| 05 | fuel tank breather line | 1 | 13909884338 | Shop at ECS Tuning | ||||||
| 06 | Suction jet pump with line | 1 | 13909884345 | Shop at ECS Tuning | ||||||
| 07 | Tubing support | 1 | 13909895921 | Shop at ECS Tuning | ||||||
| 08 | Fillister head screw | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI M340i Tank EVAP vent valve / lines?
- This technical diagram illustrates the Tank EVAP vent valve / lines within the Fuel preparation system group for the 3 Series G20 Sedan LCI M340i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank breather valve (Part #13907643106).
- Which models use the hardware listed in this Tank EVAP vent valve / lines?
- The hardware and components featured in the Tank EVAP vent valve / lines are specific to the 3 Series G20 Sedan LCI M340i produced during 2023. These technical specifications ensure that parts like the Fuel tank breather valve (13907643106) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tank EVAP vent valve / lines assembly?
- Each item in the Tank EVAP vent valve / lines corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI M340i, you can identify the Fuel tank breather valve by locating its position on the schematic, which then links to the official BMW part number 13907643106 for the Fuel preparation system section.
