Hot-film air mass meter for BMW 3 Series E46 330Cd (2006)

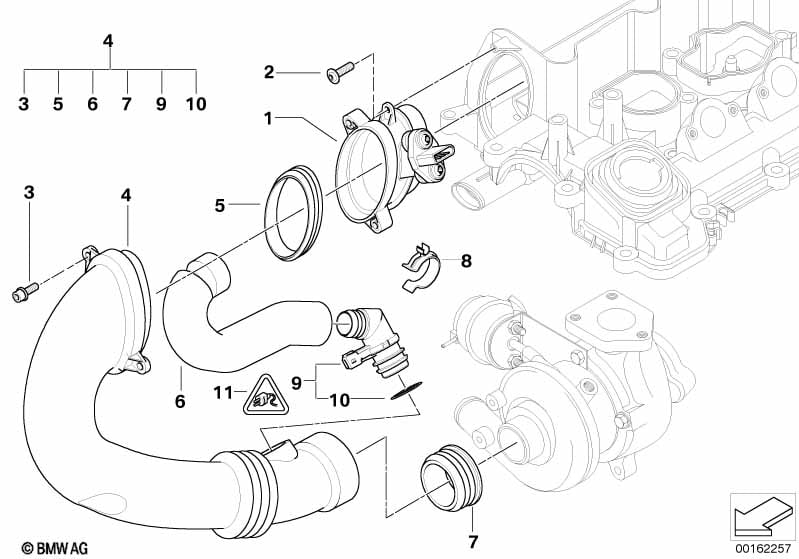

This Hot-film air mass meter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 1 | 13627788744 | Shop at ECS Tuning | ||||||
| 02 | Plastic bolt | 5,0X22 | 2 | 11127790984 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | 2 | 09/2000 | 11127803813 | $3.17 | Shop at ECS Tuning | ||||
| 04 | Filtered air pipe | 1 | 13717786013 | $112.54 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | 1 | 13712247395 | Shop at ECS Tuning | ||||||
| 06 | Hose | 1 | 07/2000 | 13717786034 | $18.38 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | 1 | 13717792090 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Cd Hot-film air mass meter?
- This technical diagram illustrates the Hot-film air mass meter within the Fuel preparation system group for the 3 Series E46 330Cd produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13627788744).
- Which models use the hardware listed in this Hot-film air mass meter?
- The hardware and components featured in the Hot-film air mass meter are specific to the 3 Series E46 330Cd produced during 2006. These technical specifications ensure that parts like the Hot-film air mass meter (13627788744) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hot-film air mass meter assembly?
- Each item in the Hot-film air mass meter corresponds to the numbered list below the illustration. For the 3 Series E46 330Cd, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13627788744 for the Fuel preparation system section.
