Fuel lines for BMW 3 Series E46 320d (2002)

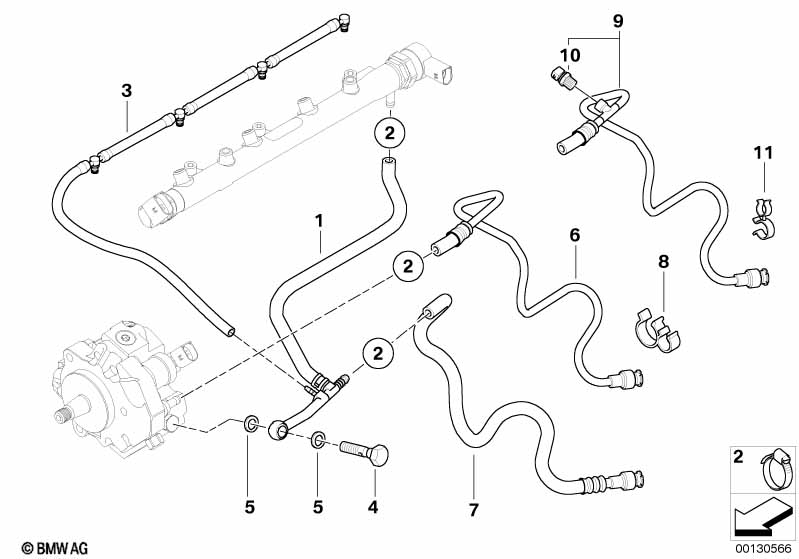

This Fuel lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel return line | 1 | 09/2001 | 13537796788 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L12-15 | 3 | 09/2001 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 03 | Overflow oil line | 1 | 09/2001 | 13537787485 | Shop at ECS Tuning | |||||
| 04 | Hollow bolt | 1 | 09/2001 | 01/2005 | 11421338506 | $15.92 | Shop at ECS Tuning | |||
| 04 | Hollow bolt | 1 | 09/2001 | 07119905427 | $2.25 | Shop at ECS Tuning | ||||

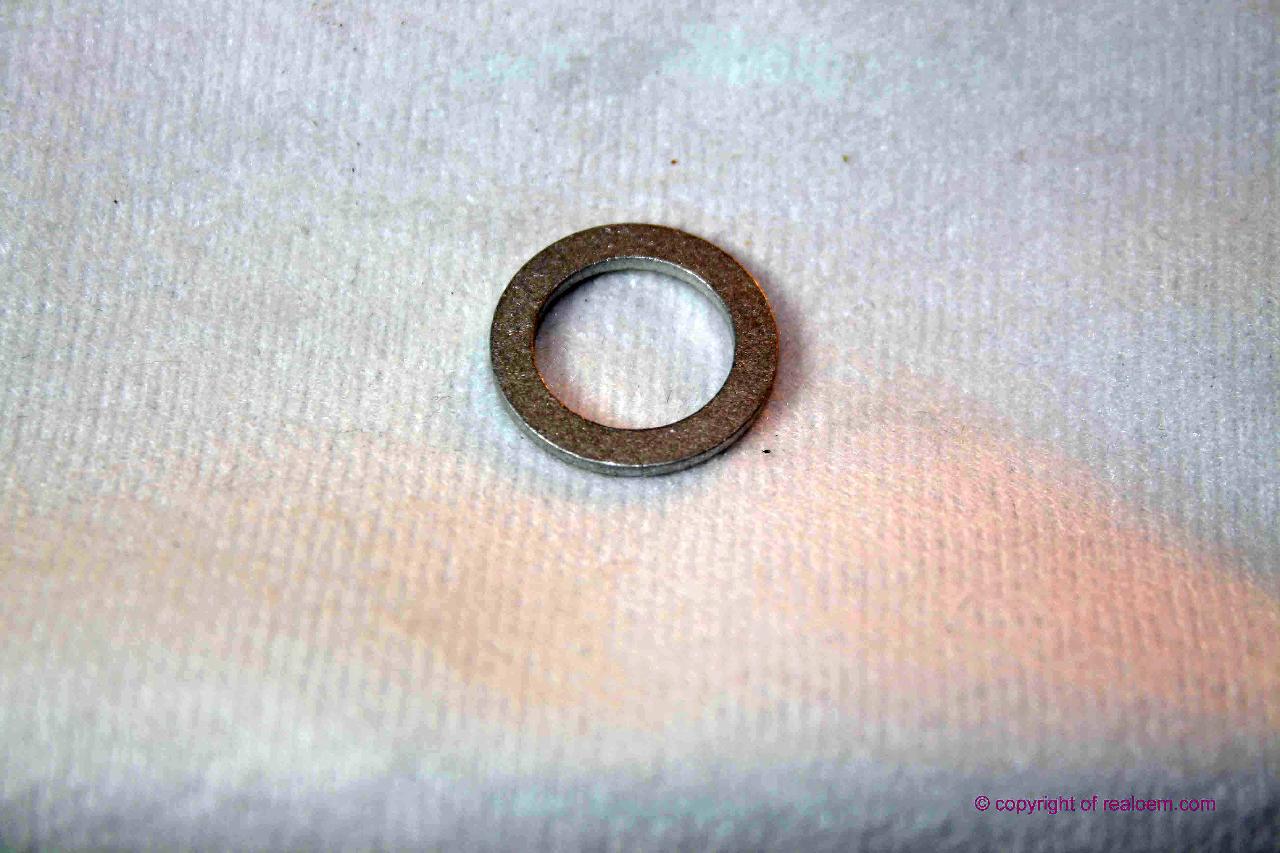

| 05 | Gasket ring | A12X18-AL | 2 | 09/2001 | 01/2006 | 07119963155 | $0.29 | Shop at ECS Tuning | ||
| 05 | Gasket ring | A12X17-CU SN | 2 | 09/2001 | 13537801526 | $0.55 | Shop at ECS Tuning | |||
| 06 | Fuel feed line | 1 | 09/2001 | 13537796774 | Shop at ECS Tuning | |||||
| 07 | Fuel return line | 1 | 09/2001 | 13537796789 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | D=8MM/14MM | 1 | 09/2001 | 11721164034 | $1.17 | Shop at ECS Tuning | |||
| 08 | Holder | 11,5/8,0MM | 2 | 09/2001 | 61131369832 | $0.38 | Shop at ECS Tuning | |||
| For vehicles with EU4 exhaust emissions standard |
S167A=Yes |
|||||||||
| 09 | Fuel feed line | 1 | 09/2001 | 13537796775 | Shop at ECS Tuning | |||||
| 10 | Sensor, fuel temperature | 1 | 09/2001 | 13537789304 | $31.52 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | 13/16 | 1 | 09/2001 | 12/2003 | 11721711000 | Shop at ECS Tuning | |||
