Basic DDE control unit for BMW 3 Series E46 330xd (2003)

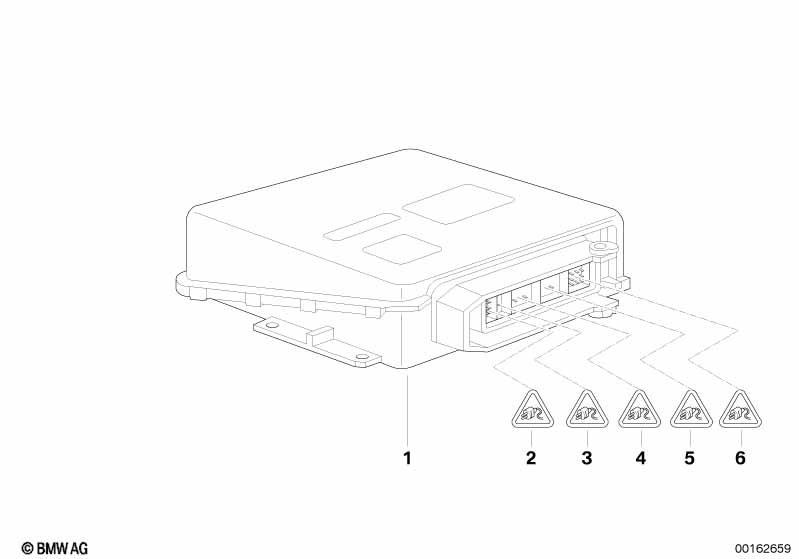

This Basic DDE control unit technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 01 | Basic DDE control unit | 4.0 | 1 | 09/2001 | 13617789376 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Basic DDE control unit | 4.0 | 1 | 09/2001 | 13617789376 | Shop at ECS Tuning | ||||
| 02 | Socket housing | 9 POL. /A1 | 1 | 12521744624 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flachfederkontakt MDK4 2.8 ELA | 1-2,5 MM²/SN | 1 | 12521737773 | $0.32 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 12527502456 | $4.72 | Shop at ECS Tuning | |||||
| 03 | Socket housing | 12 POL. /A | 1 | 12521744627 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Covering cap | 24 POL. /A | 1 | 12521744626 | $2.62 | Shop at ECS Tuning | ||||
| -- | Socket housing | 12 POL. /A | 1 | 12521744627 | $1.73 | Shop at ECS Tuning | ||||
| -- | Socket housing | 12 POL. /B | 1 | 12521744628 | $1.73 | Shop at ECS Tuning | ||||
| 04 | Covering cap | 52POL./Z-CODE | 1 | 12527526424 | $4.88 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Socket housing | 26 POL. /A | 1 | 12521744633 | $1.73 | Shop at ECS Tuning | ||||
| -- | Socket housing | 26POL. /B | 1 | 12521744634 | $1.73 | Shop at ECS Tuning | ||||
| 05 | Covering cap | 40 POL. /B | 1 | 12521744629 | $2.30 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 1 | 61131383776 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket housing | 20 POL. /A | 1 | 12521744630 | $1.73 | Shop at ECS Tuning | ||||
| -- | Socket housing | 20 POL. | 1 | 12521744631 | $1.73 | Shop at ECS Tuning | ||||
| 06 | Socket housing | 9 POL. /A1 | 1 | 12521744624 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Flachfederkontakt MDK4 2.8 ELA | 1-2,5 MM²/SN | 1 | 12521737773 | $0.32 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 12527502456 | $4.72 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xd Basic DDE control unit?
- This technical diagram illustrates the Basic DDE control unit within the Fuel preparation system group for the 3 Series E46 330xd produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Basic DDE control unit (Part #13617789376).
- Which models use the hardware listed in this Basic DDE control unit?
- The hardware and components featured in the Basic DDE control unit are specific to the 3 Series E46 330xd produced during 2003. These technical specifications ensure that parts like the Basic DDE control unit (13617789376) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Basic DDE control unit assembly?
- Each item in the Basic DDE control unit corresponds to the numbered list below the illustration. For the 3 Series E46 330xd, you can identify the Basic DDE control unit by locating its position on the schematic, which then links to the official BMW part number 13617789376 for the Fuel preparation system section.
